Interior - Sun Visor Removal/Installation Supplement

S-SB-0015-09

Rev1

April 6, 2009

Repair Manual Supplement - Sunvisor Removal & Installation Procedure

Service Category
Vehicle Interior

Section
Interior Panels/Trim

Market
USA

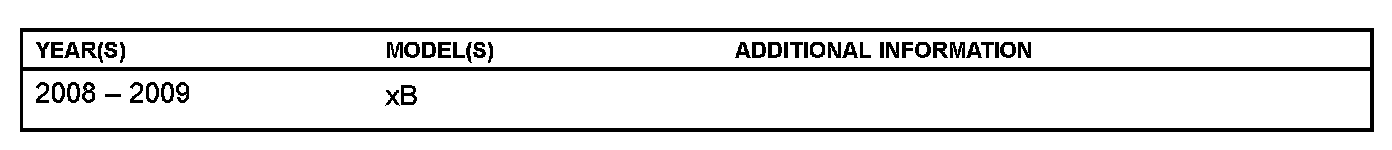

Applicability

TSB REVISION NOTICE

^ July 20, 2009 Rev1:

The Figure numbers have been updated throughout the entire document.

Any previous printed versions of this service bulletin should be discarded.

Introduction

To ensure proper removal and installation of the Sunvisor on 2008 and 2009 model year Scion xB vehicles use these instructions as a supplement to the Repair Manual.

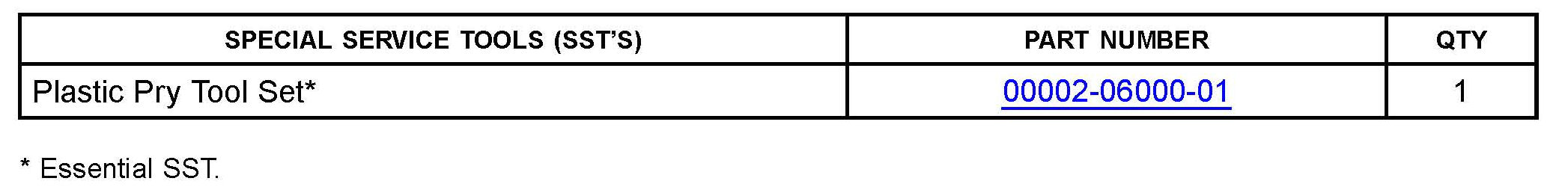

Required Tools & Equipment

Additional SSTs may be ordered by calling 1-800-933-8335.

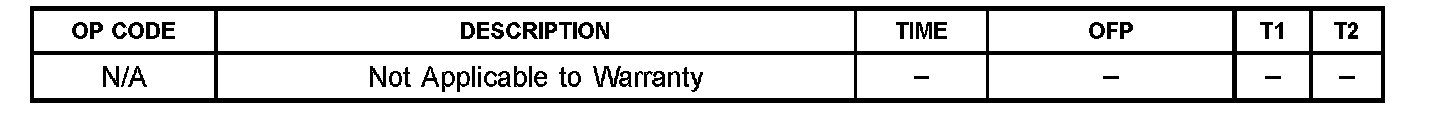

Warranty Information

Removal Procedure

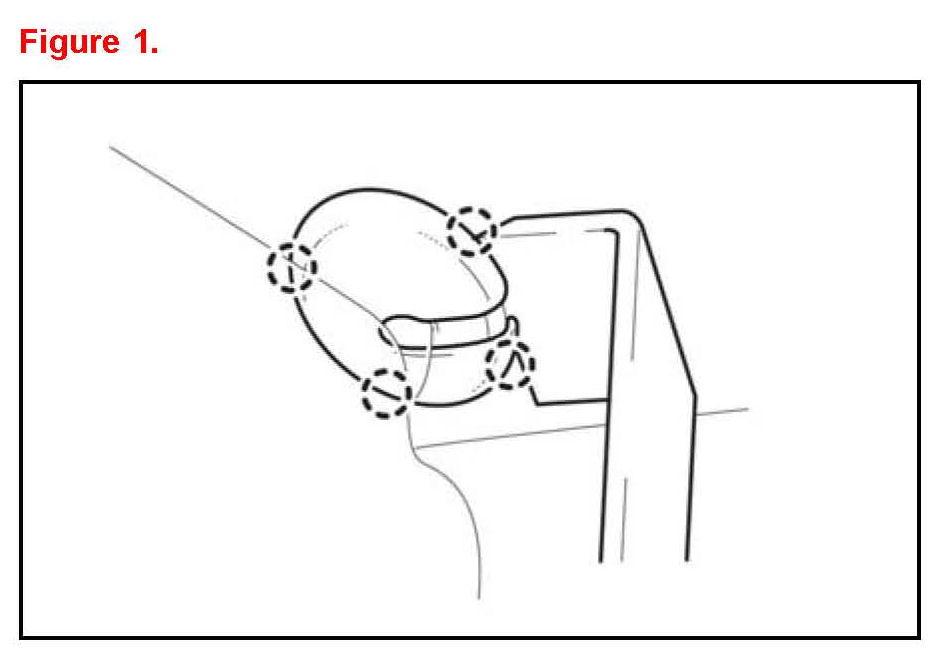

1. Disengage the 4 claws from the Sunvisor plastic bracket cover.





2. Remove the plastic bracket cover and set aside for later installation.

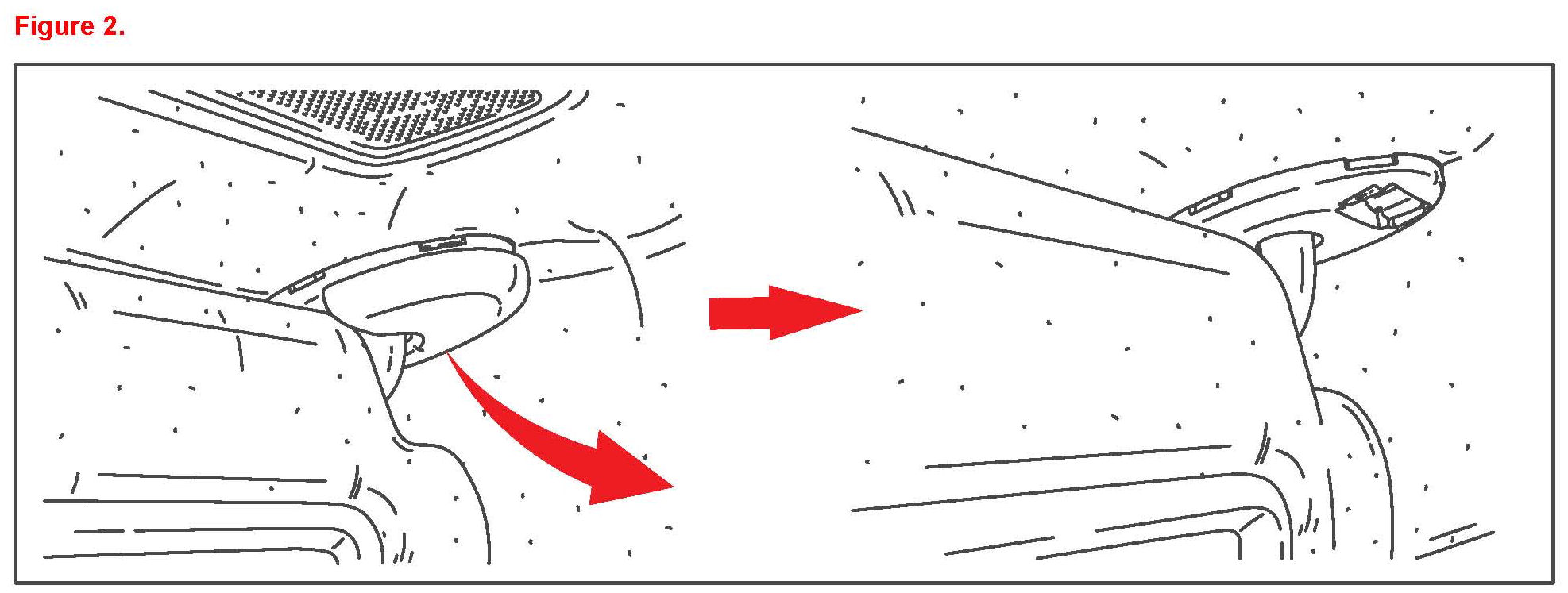

3. Carefully pull straight down on the sunvisor sub-assembly and remove it from the opening in the metal roof panel.

NOTE

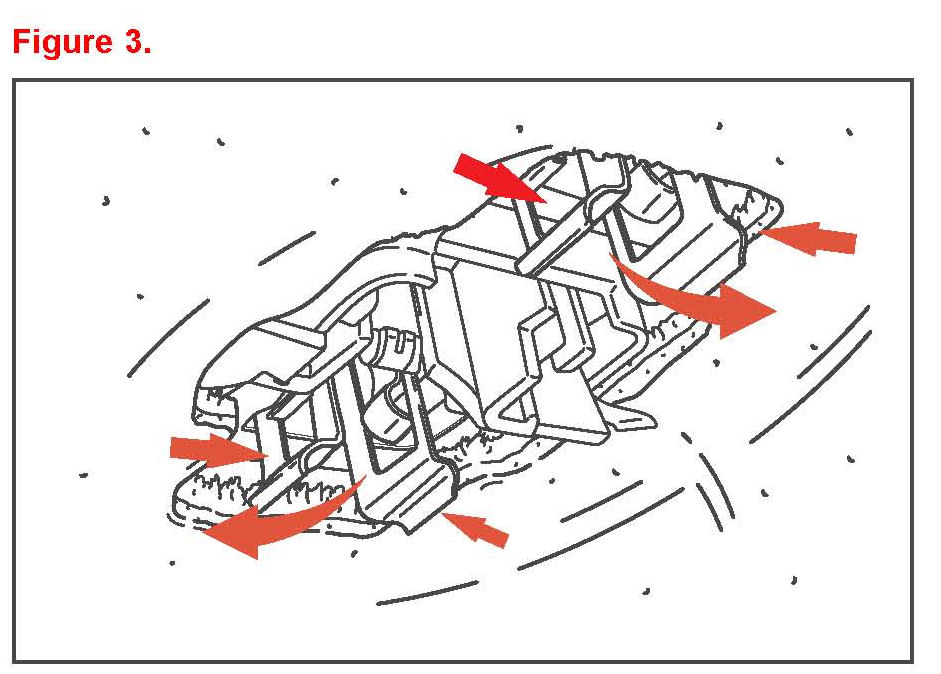

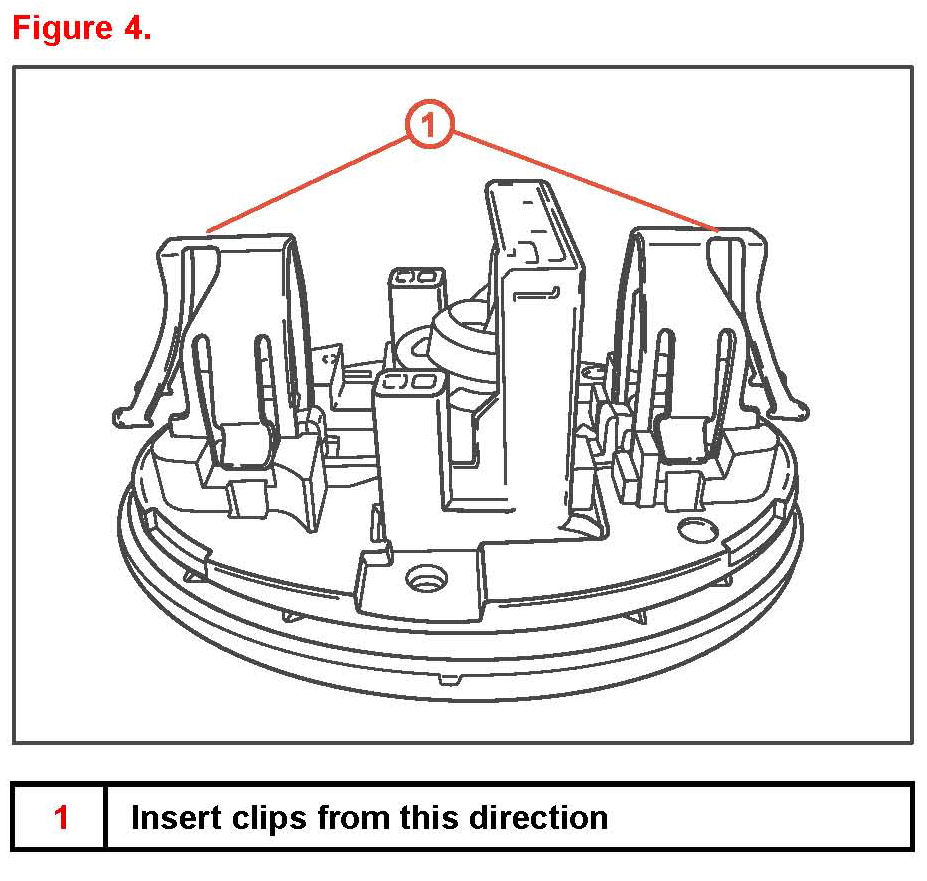

Attach the remaining clips in the metal roof panel. Pinch the clip tabs together and rotate away from the connector as shown in the top of Figure 3. Remove the clips and reinstall the clips back into the sunvisor bracket from the direction shown in the bottom of Figure 4.

Installation Procedure:

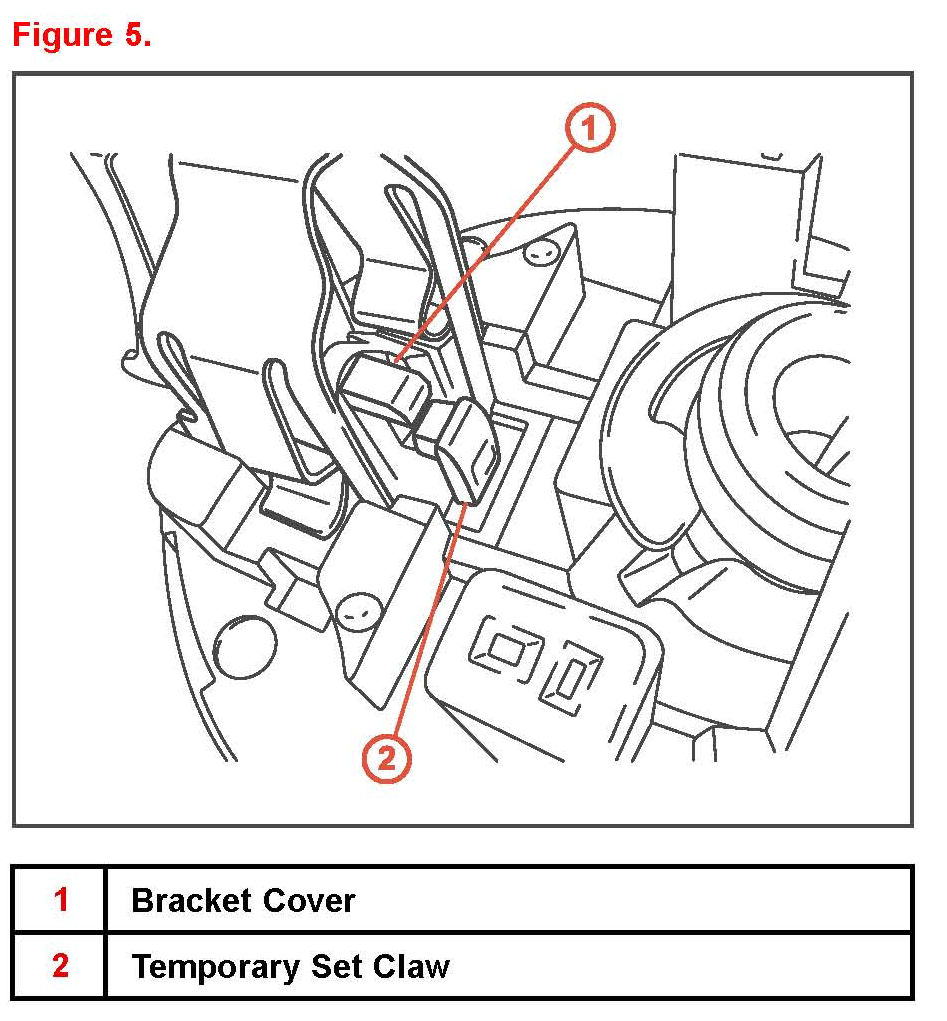

1. Partially install the bracket cover into the sunvisor bracket making sure both temporary set claws are engaged as shown in Figure 5.


NOTE

Make sure to ONLY partially install the bracket cover into the bracket during installation, because damage to the clip, sunvisor mount or roof sheet metal tabs may occur if the bracket cover is fully in the sunvisor bracket.

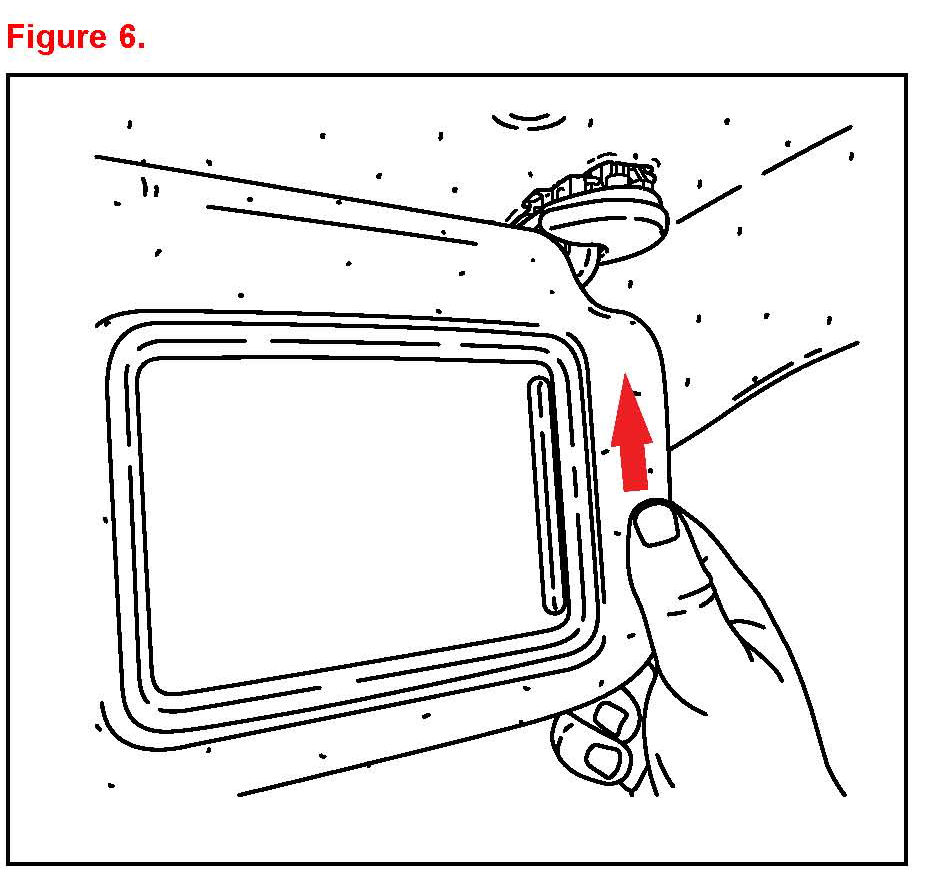

2. Install the sunvisor sub-assembly into the opening in the sheet metal roof panel by grasping the sunvisor sub-assembly with two hands and pushing the bracket upward as shown in Figure 6.

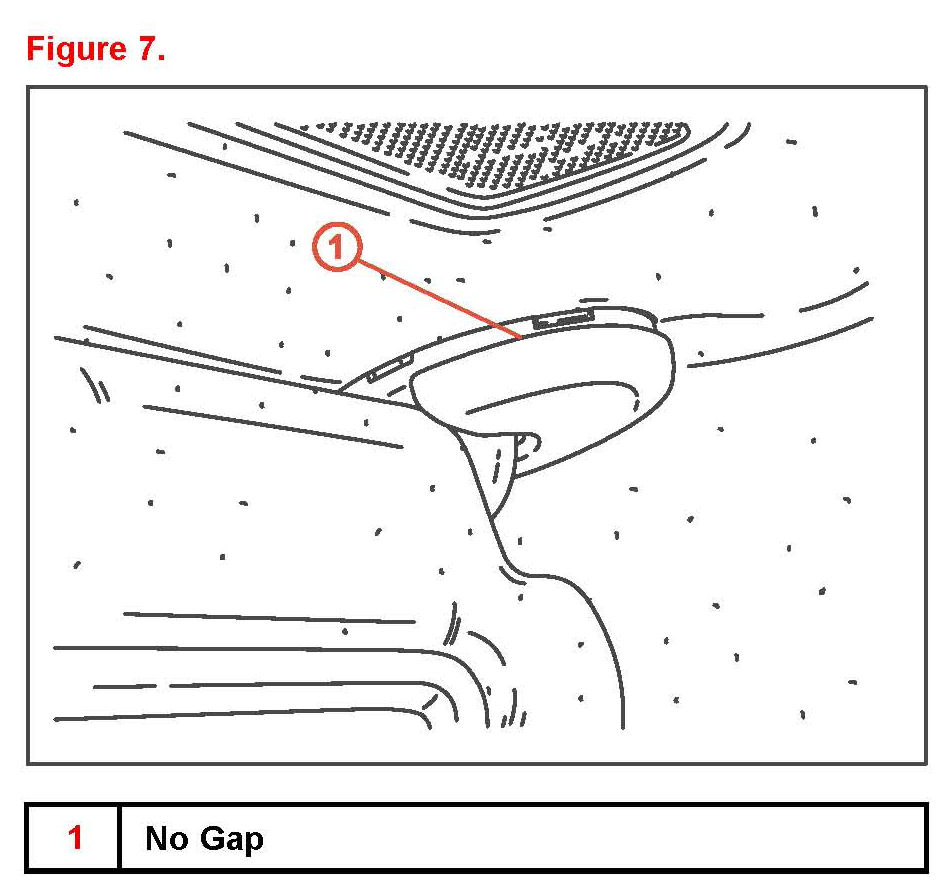

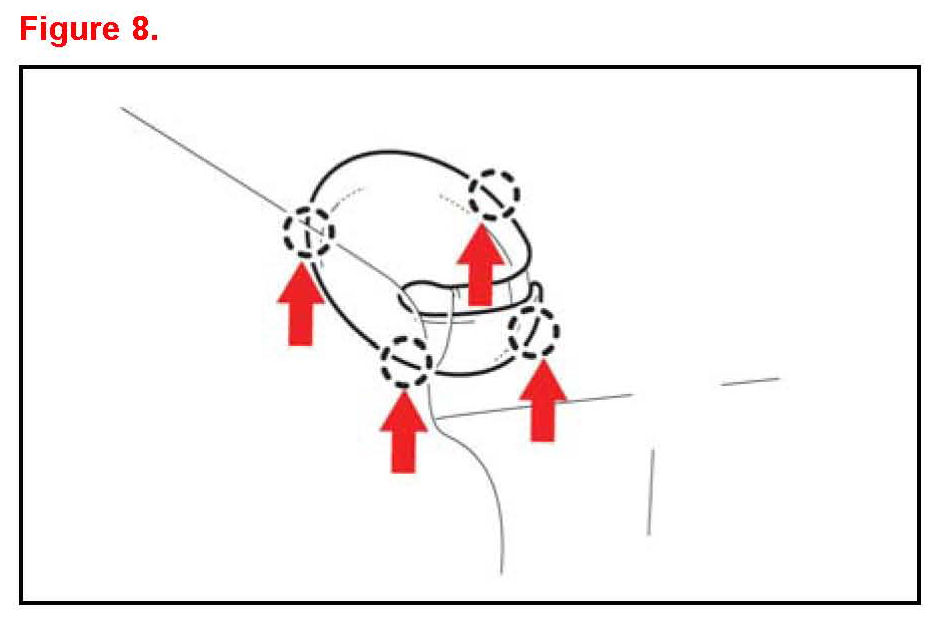

3. Make sure the sunvisor bracket is flush with the headliner all the way around the perimeter of the bracket as shown in Figure 7 and then push the bracket cover upward to engage all 4 claws at the same time as shown in Figure 8.

4. Confirm the proper operation of the sunvisor and the operation of the vanity light.
