Body - Front Fender Liner Clip Installation/Removal

S-SB-0022-08

May 15, 2008

Front Fender Liner Pin Hold Clip Installation

Service Category
Vehicle Exterior

Section
Exterior Panels/Trim

Market
USA

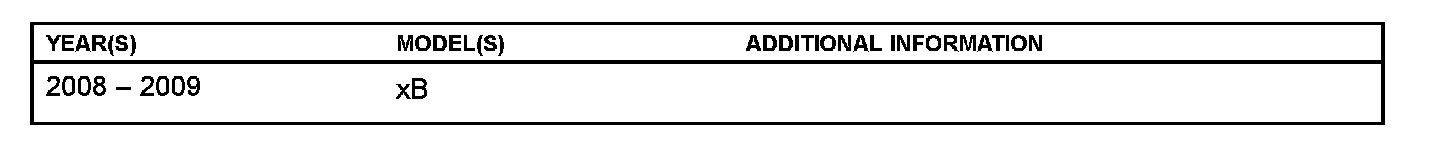

Applicability

Introduction
To prevent damage to the front fender liner the following procedures should be used when removing and installing the front fender liner pin hold clip.

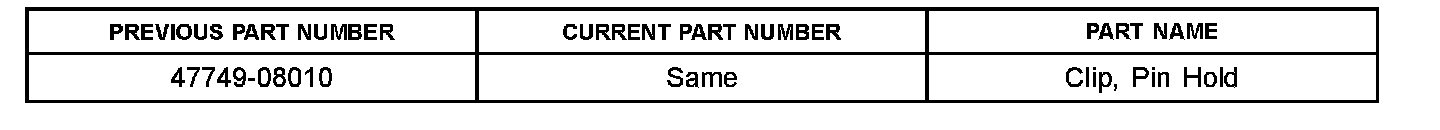

Parts Information

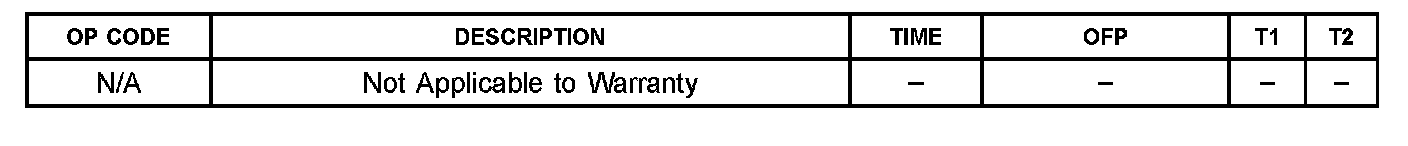

Warranty Information

Removal Procedure

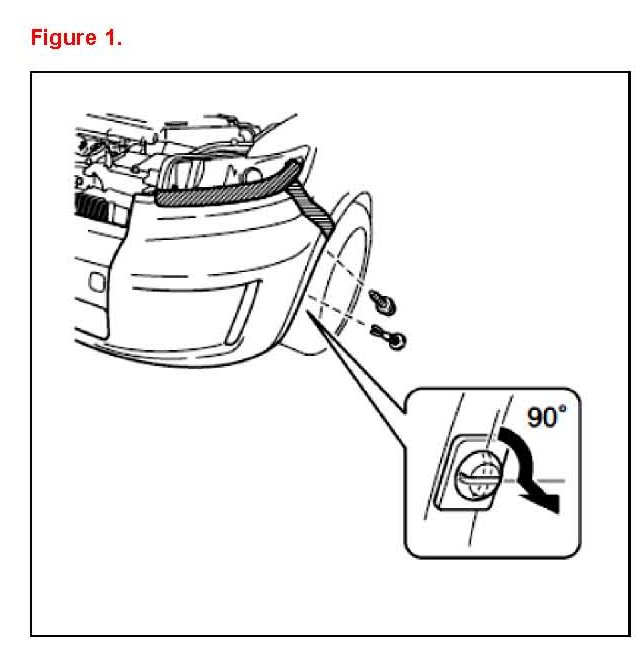

1. Using a screwdriver rotate the pin hold clip 90 degrees so the slot is aligned horizontally.

2. Pull clip out to remove.

HINT
Use the same procedure for the RH side and LH side.

Installation





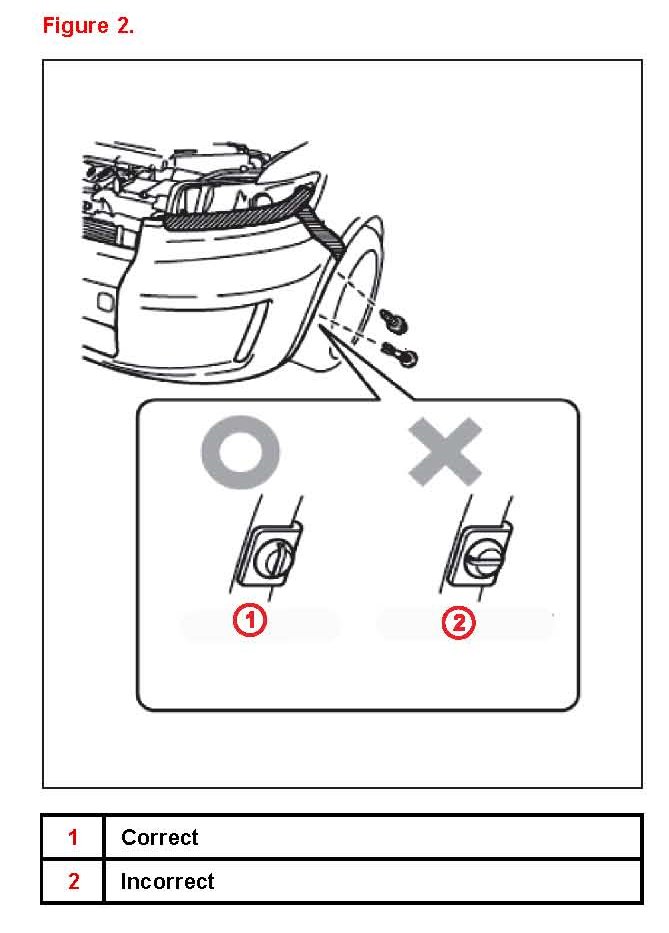

1. Insert the pin hold clip with the slot aligned vertically.

2. After installation confirm that the slot is vertical.

NOTE
DO NOT rotate the clip after inserting it.

HINT
Use the same procedure for the RH side and LH side.
