Trunk / Liftgate Switch: Testing and Inspection

ENGINE HOOD / DOOR: BACK DOOR OPENER SWITCH: INSPECTION

INSPECTION

1. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY

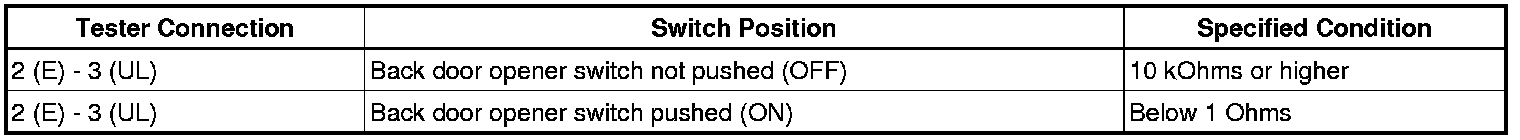

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not specified, replace the switch assembly.
