MIRROR: OUTER MIRROR SWITCH: INSTALLATION

INSTALLATION





1. INSTALL OUTER MIRROR SWITCH ASSEMBLY

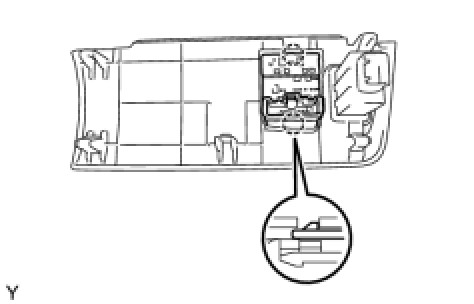

(a) Engage the 2 claws and install the outer mirror switch assembly.
2. INSTALL NO. 1 SWITCH HOLE BASE Installation
3. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
4. INSTALL COMBINATION METER ASSEMBLY Installation
5. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation
6. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Installation
7. INSTALL FRONT PILLAR GARNISH RH Installation
8. INSTALL FRONT PILLAR GARNISH LH Installation
9. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
10. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
