Installation

DOOR LOCK: UNLOCK WARNING SWITCH: INSTALLATION

INSTALLATION





1. INSTALL UNLOCK WARNING SWITCH

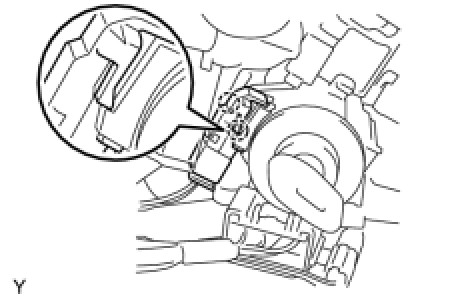

(a) Engage the 2 claws and install the unlock warning switch.
(b) Connect the connector.
2. INSTALL STEERING COLUMN COVER Installation
3. INSTALL STEERING WHEEL ASSEMBLY Installation
4. INSTALL STEERING PAD Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
