Reassembly

SEAT: REAR SEAT ASSEMBLY (for RH Side): REASSEMBLY

REASSEMBLY
CAUTION: Wear protective gloves. Sharp surfaces on the rear seatback frame could cause injuries to your hands.

1. INSTALL REAR SEATBACK LOCK ASSEMBLY





(a) Install the rear seatback lock with the 2 bolts.
Torque: 30 Nm (306 kgf-cm, 22 ft-lbf)
2. INSTALL REAR CENTER SEAT BELT OUTER ASSEMBLY
3. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY





(a) Install the rear seatback frame.

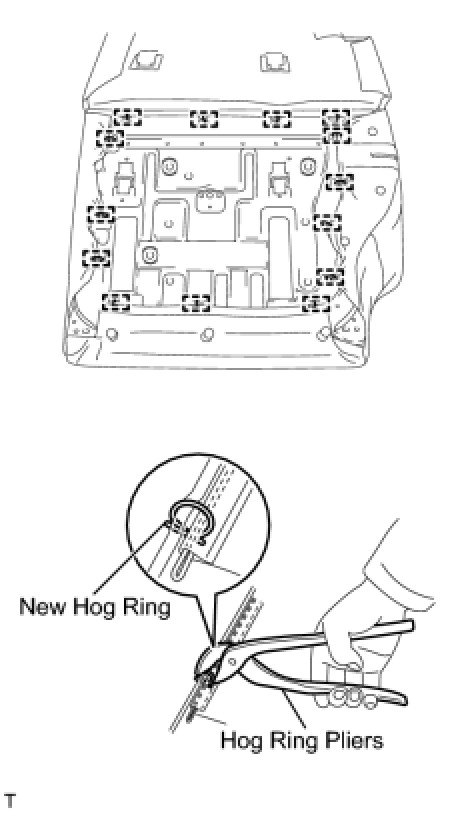

(b) Using hog ring pliers, install 14 new hog rings as shown in the illustration.

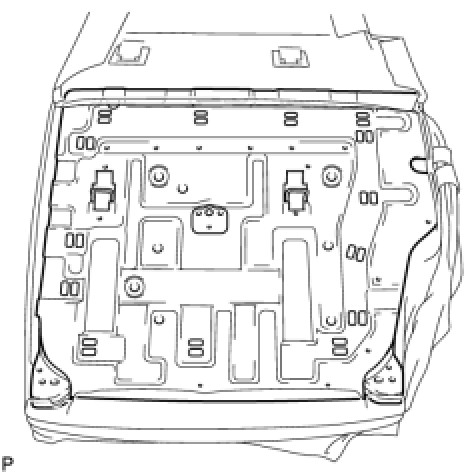

(c) Install the rear seatback cover with the 10 clips.





4. INSTALL REAR SEAT HEADREST SUPPORT

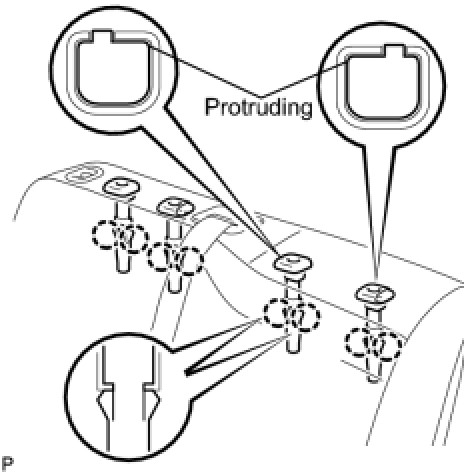

(a) Align the protruding portion of the rear seat headrest support with the installation groove on the rear seatback frame.
(b) Engage the 2 claws and install the rear seat headrest support.
HINT: Use the same procedure to install all the rear seat headrest supports.

5. INSTALL REAR SEAT BACK COVER RH

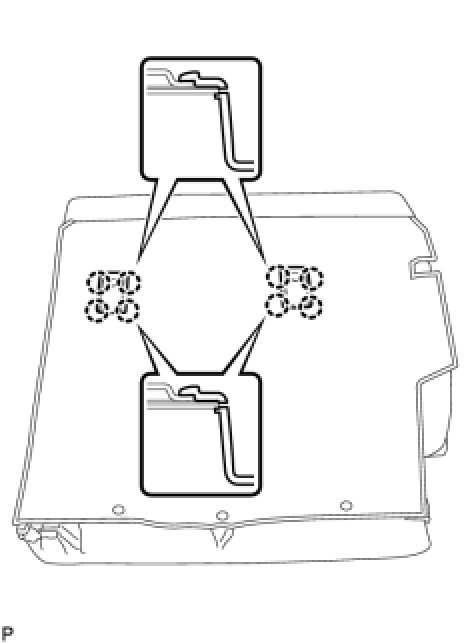

(a) Engage the 4 claws and install the rear seat back cover RH.
HINT: Use the same procedure to install all the rear seat back cover RH.

6. INSTALL REAR SEAT BACK STOP BUTTON GROMMET

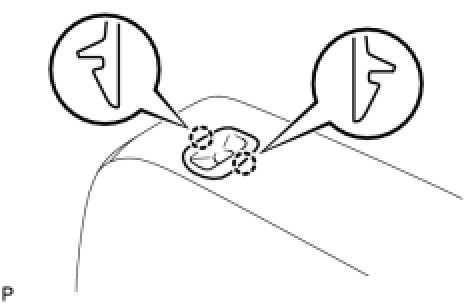

(a) Engage the 2 claws and install the rear seat back stop button grommet.
7. INSTALL REAR SEATBACK LOCK RELEASE BUTTON

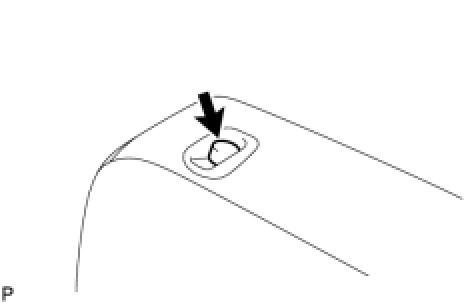

(a) Install the rear seatback lock release button.
8. INSTALL REAR SEAT SHOULDER BELT COVER

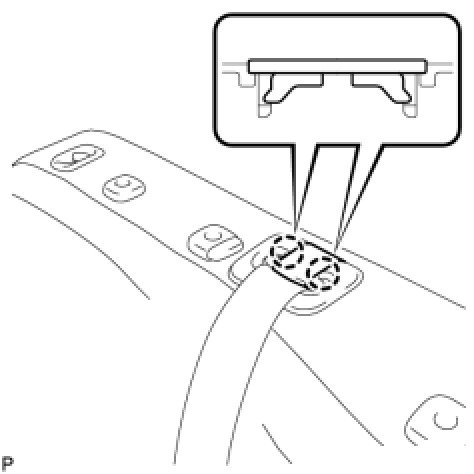

(a) Move the rear seat shoulder belt cover in the direction indicated by arrow A in the illustration to engage the 2 claws.
(b) Move the rear seat shoulder belt cover in the direction indicated by arrow B in the illustration to engage the 2 claws and install the rear seat shoulder belt cover.
9. INSTALL SEAT BELT ANCHOR COVER CAP





(a) Engage the 2 claws and install the seat belt anchor cover cap.
10. INSTALL REAR SEAT HEADREST ASSEMBLY

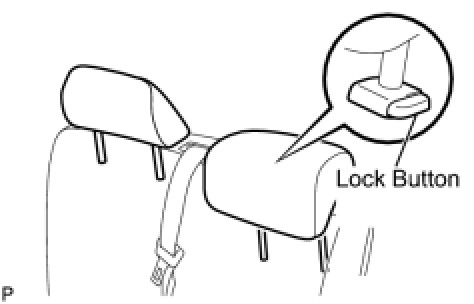

(a) Push the lock button of the rear seat headrest support and install the rear seat headrest.
