Disassembly

SEAT: REAR SEAT ASSEMBLY (for RH Side): DISASSEMBLY

DISASSEMBLY
CAUTION: Wear protective gloves. Sharp surfaces on the rear seatback frame could cause injuries to your hands.

1. REMOVE REAR SEAT HEADREST ASSEMBLY





(a) Push the lock button of the rear seat headrest support and remove the rear seat headrest.
2. REMOVE SEAT BELT ANCHOR COVER CAP





(a) Disengage the 2 claws and remove the seat belt anchor cover cap.
3. REMOVE REAR SEAT SHOULDER BELT COVER

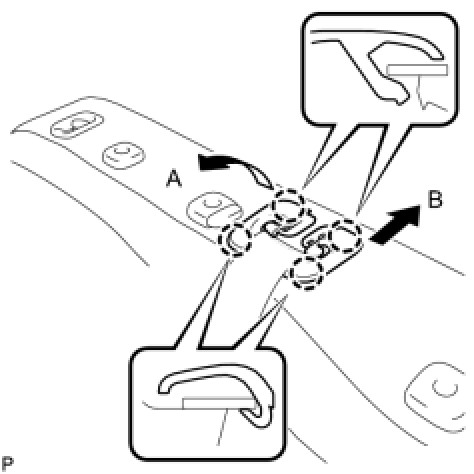

(a) Move the rear seat shoulder belt cover in the direction indicated by arrow A in the installation to disengage the 2 claws.
(b) Move the rear seat shoulder belt cover in the direction indicated by B in the illustration to disengage the 2 claws and remove the rear seat shoulder belt cover.
4. REMOVE REAR SEATBACK LOCK RELEASE BUTTON





(a) Remove the rear seatback lock release button.
5. REMOVE REAR SEAT BACK STOP BUTTON GROMMET





(a) Disengage the 2 claws and remove the rear seat back stop button grommet.
6. REMOVE REAR SEAT BACK COVER RH





(a) Disengage the 6 claws and remove the rear seat back cover RH.
HINT: Use the same procedure to remove all the rear seat back cover RH.

7. REMOVE REAR SEAT HEADREST SUPPORT
Using a clip remover, remove the 10 clips and open the rear seatback cover.

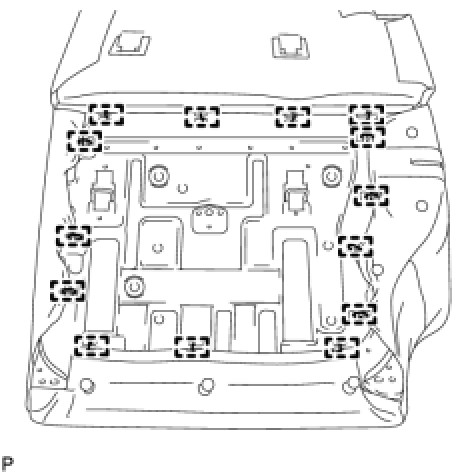

(a) Remove the 14 hog rings.

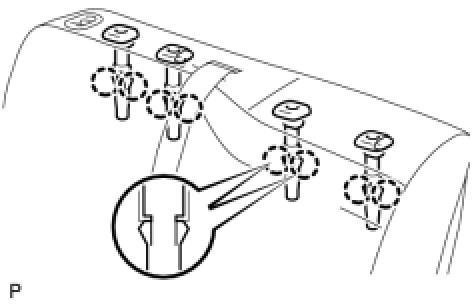

(b) Disengage the 2 claws and remove the rear seat headrest support.
HINT: Use the same procedure to remove all the rear seat headrest supports.

8. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY





(a) Remove the rear seatback frame.
9. REMOVE REAR CENTER SEAT BELT OUTER ASSEMBLY
10. REMOVE REAR SEATBACK LOCK ASSEMBLY





(a) Remove the 2 bolts and the rear seatback lock.
