Reassembly

SEAT: REAR SEAT ASSEMBLY (for LH Side): REASSEMBLY

REASSEMBLY
CAUTION: Wear protective gloves. Sharp surfaces on the rear seatback frame could cause injuries to your hands.

1. INSTALL REAR SEATBACK LOCK ASSEMBLY

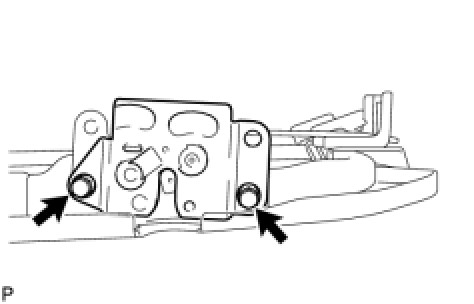

(a) Install the rear seatback lock with the 2 bolts.
Torque: 30 Nm (306 kgf-cm, 22 ft-lbf)
2. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY

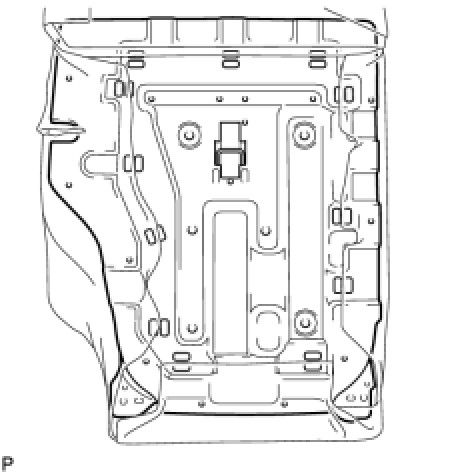

(a) Install the rear seatback frame.

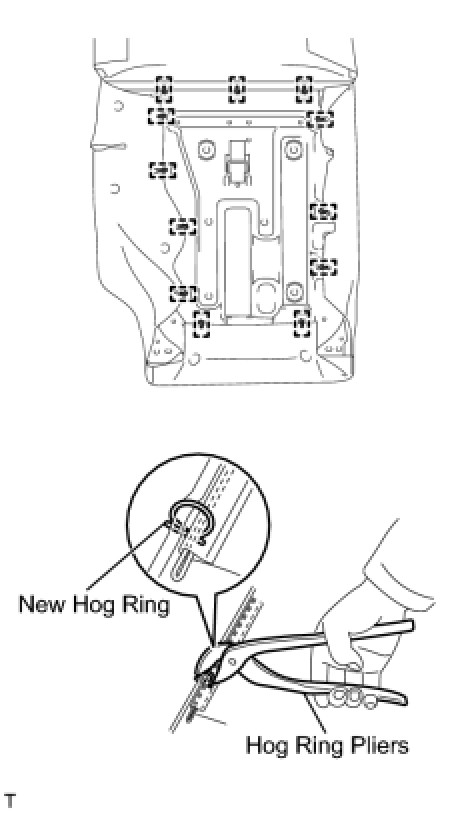

(b) Using hog ring pliers, install 12 new hog rings as shown in the illustration.

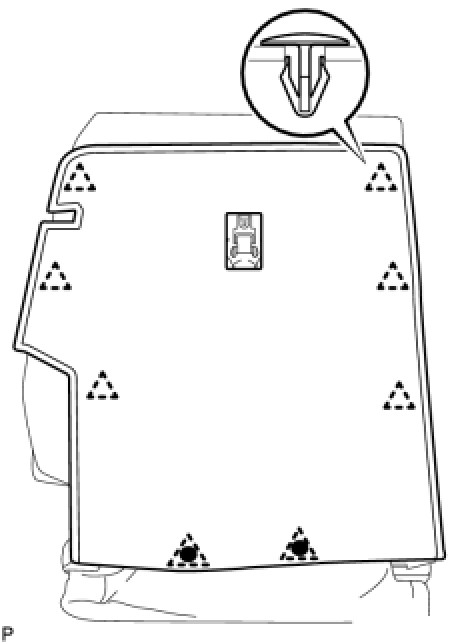

(c) Install the rear seatback cover with the 8 clips.
3. INSTALL REAR SEATBACK STOP BUTTON GROMMET

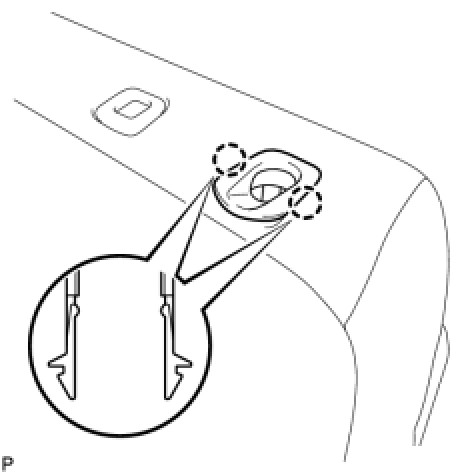

(a) Engage the 2 claws and install the rear seatback stop button grommet.





4. INSTALL REAR SEAT HEADREST SUPPORT
HINT: Use the same procedure for both sides.

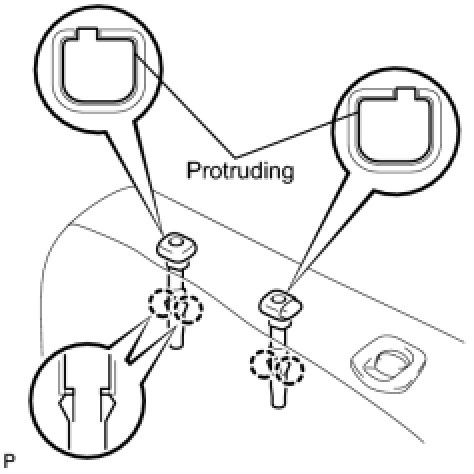

(a) Align the protruding portion of the rear seat headrest support with the installation groove on the rear seatback frame.
(b) Engage the 2 claws and install the rear seat headrest support.
5. INSTALL REAR SEAT BACK COVER LH

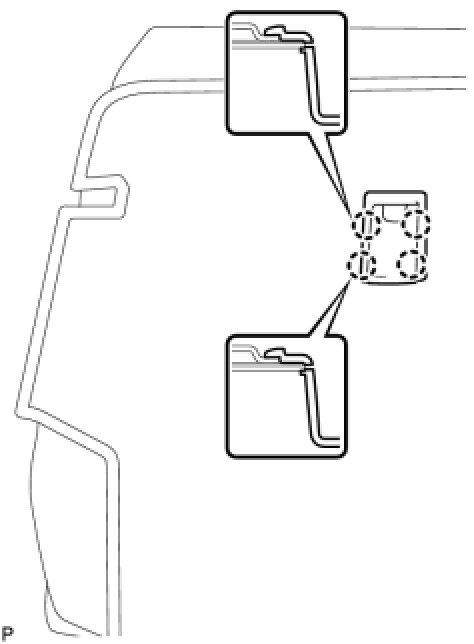

(a) Engage the 4 claws and install the rear seat back cover.
6. INSTALL REAR SEATBACK LOCK RELEASE BUTTON

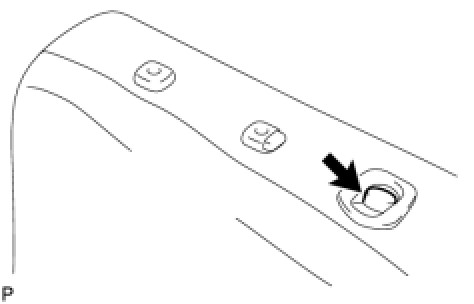

(a) Install the rear seatback lock release button.
7. INSTALL REAR SEAT HEADREST ASSEMBLY

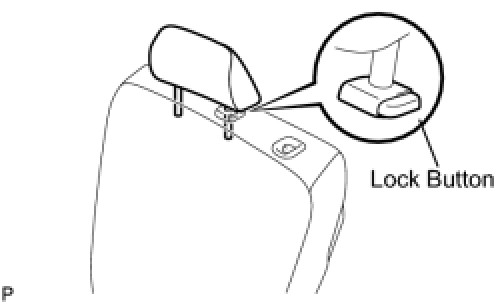

(a) Push the lock button of the rear seat headrest support and install the rear seat headrest.
