Disassembly

SEAT: REAR SEAT ASSEMBLY (for LH Side): DISASSEMBLY

DISASSEMBLY
CAUTION: Wear protective gloves. Sharp surfaces on the rear seatback frame could cause injuries to your hands.

1. REMOVE REAR SEAT HEADREST ASSEMBLY





(a) Push the lock button of the rear seat headrest support and remove the rear seat headrest.
2. REMOVE REAR SEATBACK LOCK RELEASE BUTTON





(a) Remove the rear seatback lock release button.
3. REMOVE REAR SEAT BACK COVER LH





(a) Disengage the 4 claws and remove the rear seat back cover.
4. REMOVE REAR SEAT HEADREST SUPPORT





(a) Using a clip remover, remove the 8 clips and open the rear seatback cover.

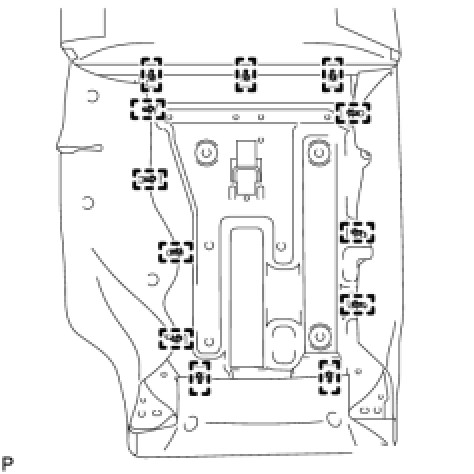

(b) Remove the 12 hog rings.

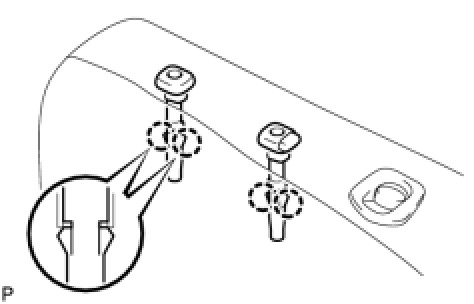

(c) Disengage the 2 claws and remove the rear seat headrest support.
HINT: Use the same procedure for both sides.

5. REMOVE REAR SEATBACK STOP BUTTON GROMMET





(a) Disengage the 2 claws and remove the rear seatback stop button grommet.
6. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY





(a) Remove the rear seatback frame.
7. REMOVE REAR SEATBACK LOCK ASSEMBLY





(a) Remove the 2 bolts and the rear seatback lock.
