INTERIOR: FRONT CONSOLE BOX: REMOVAL

REMOVAL





1. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

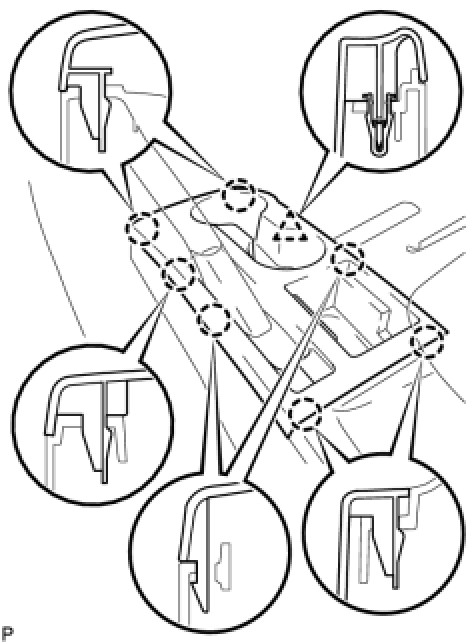

(a) Disengage the clip and 7 claws and remove the upper console panel.





2. REMOVE CONSOLE BOX CARPET

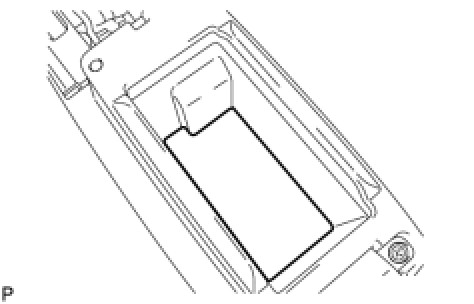

(a) Remove the console box carpet.
3. REMOVE CONSOLE BOX ASSEMBLY

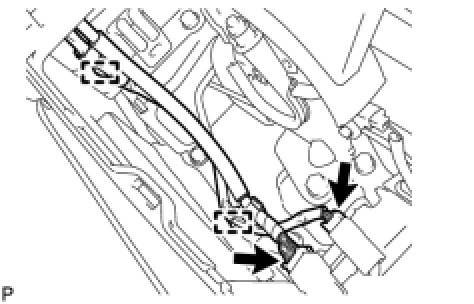

(a) Disconnect the 2 connectors.
(b) Disengage the 2 clamps.





(c) Remove the 2 clips.

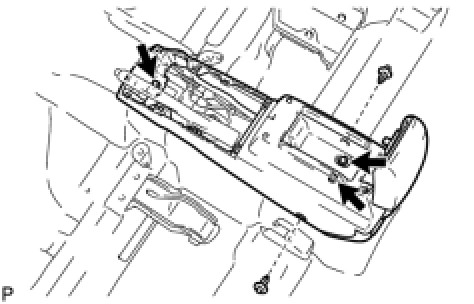

(d) Remove the 3 bolts and the console box.
