Reassembly

INTERIOR: FRONT CONSOLE BOX: REASSEMBLY

REASSEMBLY

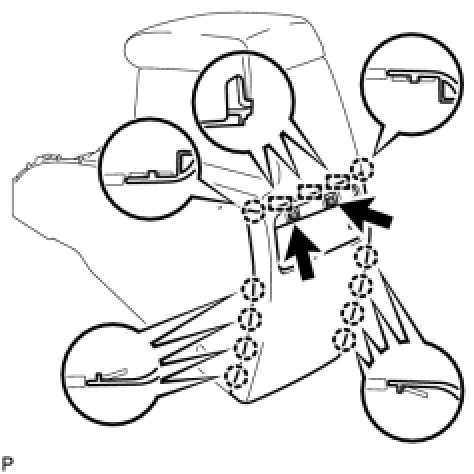

1. INSTALL CONSOLE REAR END PANEL
(a) Engage the 3 guides and 10 claws and install the console rear end panel.
(b) Install the 2 screws.

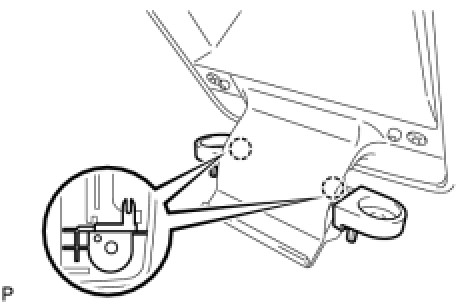

2. INSTALL INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY
(a) Engage the 2 claws and install the instrument panel cup holder.

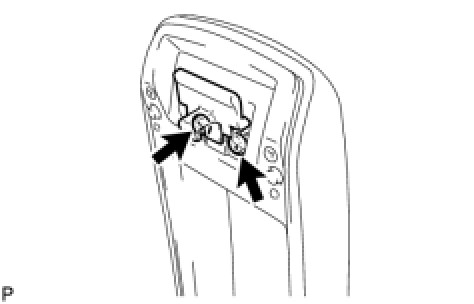

3. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
(a) Install the console compartment door lock with the 2 screws.

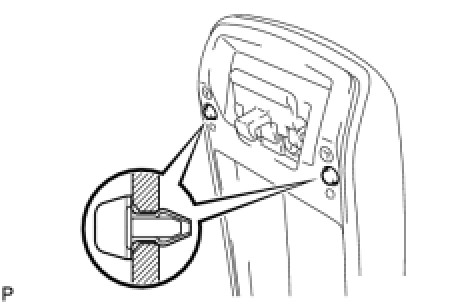

4. INSTALL CONSOLE COMPARTMENT DOOR CUSHION
(a) Install the 2 console compartment door cushions.





5. INSTALL NO. 1 CONSOLE COMPARTMENT DOOR STOPPER
(a) Engage the claw and install the console compartment door stopper.
6. INSTALL NO. 2 CONSOLE COMPARTMENT DOOR STOPPER
(a) Engage the claw and install the console compartment door stopper.

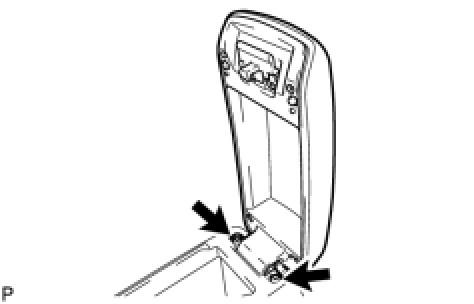

7. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
(a) Install the console compartment door with the 2 screws.

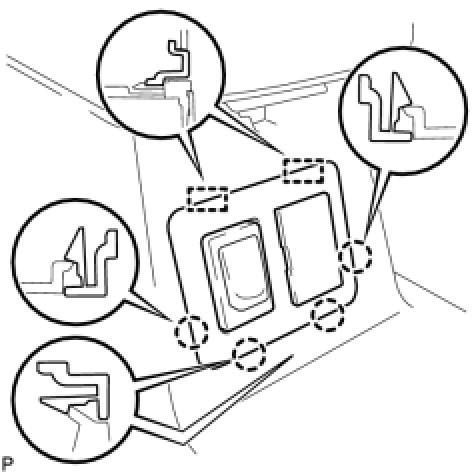

8. INSTALL CONSOLE BOX PLATE





(a) Engage the 2 guides and 4 claws and install the console box plate.

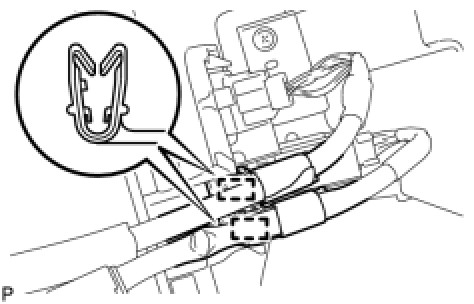

(b) Engage the 2 clamps.
