Removal

EXTERIOR: NAME PLATE: REMOVAL

REMOVAL

1. REMOVE SYMBOL EMBLEM

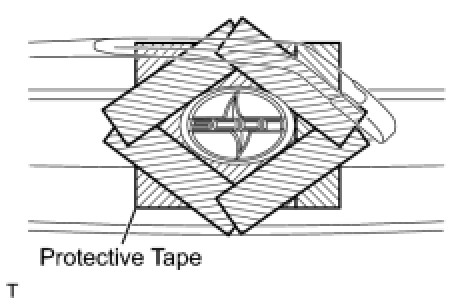

(a) Apply protective tape to the back door panel in the area around the symbol emblem.





(b) Using an infrared light, heat the symbol emblem.
CAUTION: Do not burn yourself on the hot back door panel or with the infrared light.
HINT: Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

(c) Using a gasket scraper with its tip wrapped in protective tape, gradually peel the adhesive surface and remove the symbol emblem.
(d) Remove the protective tape.
2. REMOVE NO. 2 BACK DOOR NAME PLATE

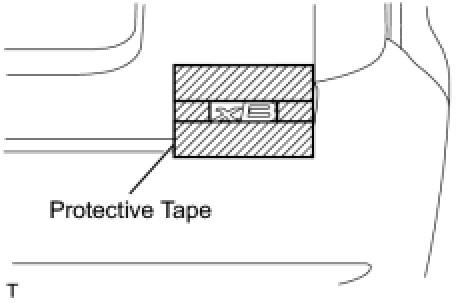

(a) Apply protective tape to the back door panel in the area around the No. 2 back door name plate.





(b) Using an infrared light, heat the No. 2 back door name plate.
CAUTION: Do not burn yourself on the hot back door panel or with the infrared light.
HINT: Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

(c) Using a gasket scraper with its tip wrapped in protective tape, gradually peel the adhesive surface and remove the No. 2 back door name plate.
(d) Remove the protective tape.
