Disposal

ENGINE HOOD / DOOR: BACK DOOR SUPPORT: DISPOSAL

DISPOSAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.





1. DISPOSE OF BACK DOOR STAY ASSEMBLY
(a) Horizontally fix the stay in a vise with the piston-rod pulled out.
(b) Wearing protective glasses, gradually cut the shaded part between A and B, shown in the illustration, using a metal saw to gradually release the gas.

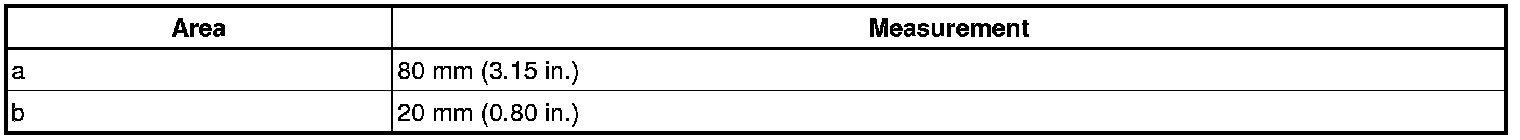

Specification:





CAUTION:
- Cover the area that is being cut with a piece of cloth because there is a possibility that metal shards may be dispersed by the gas.
- The gas is colorless, odorless and harmless.
