Low Vibration

Low Vibration and Low Noise Body

1. General

Effective application of vibration damping and noise suppressing materials reduce engine and road noise.

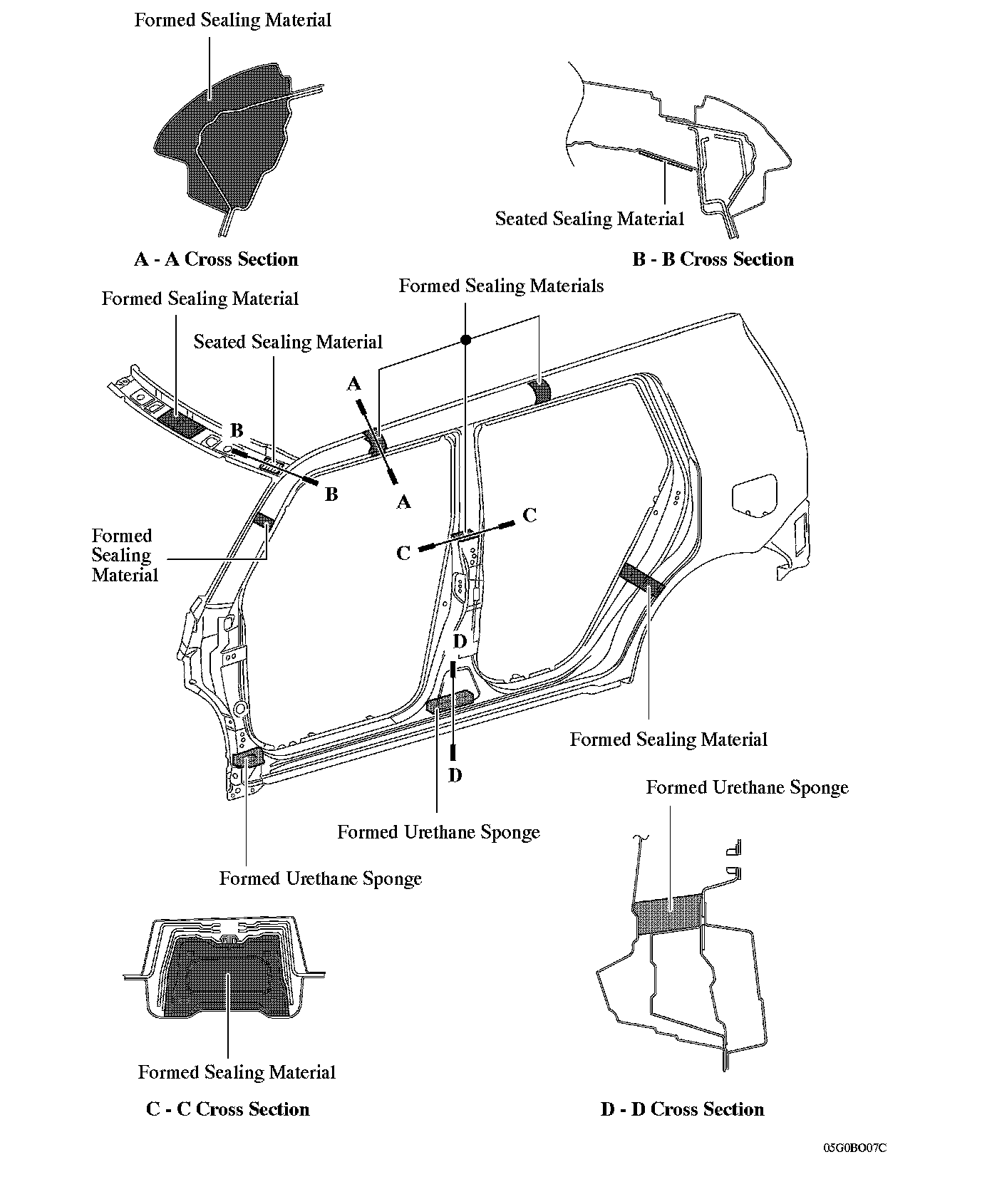

2. Sound Absorbing and Vibration Damping Materials





Foamed urethane sponge, foamed sealing material, and seated sealing material are applied onto the roof panel and pillars to reduce wind and road noise.

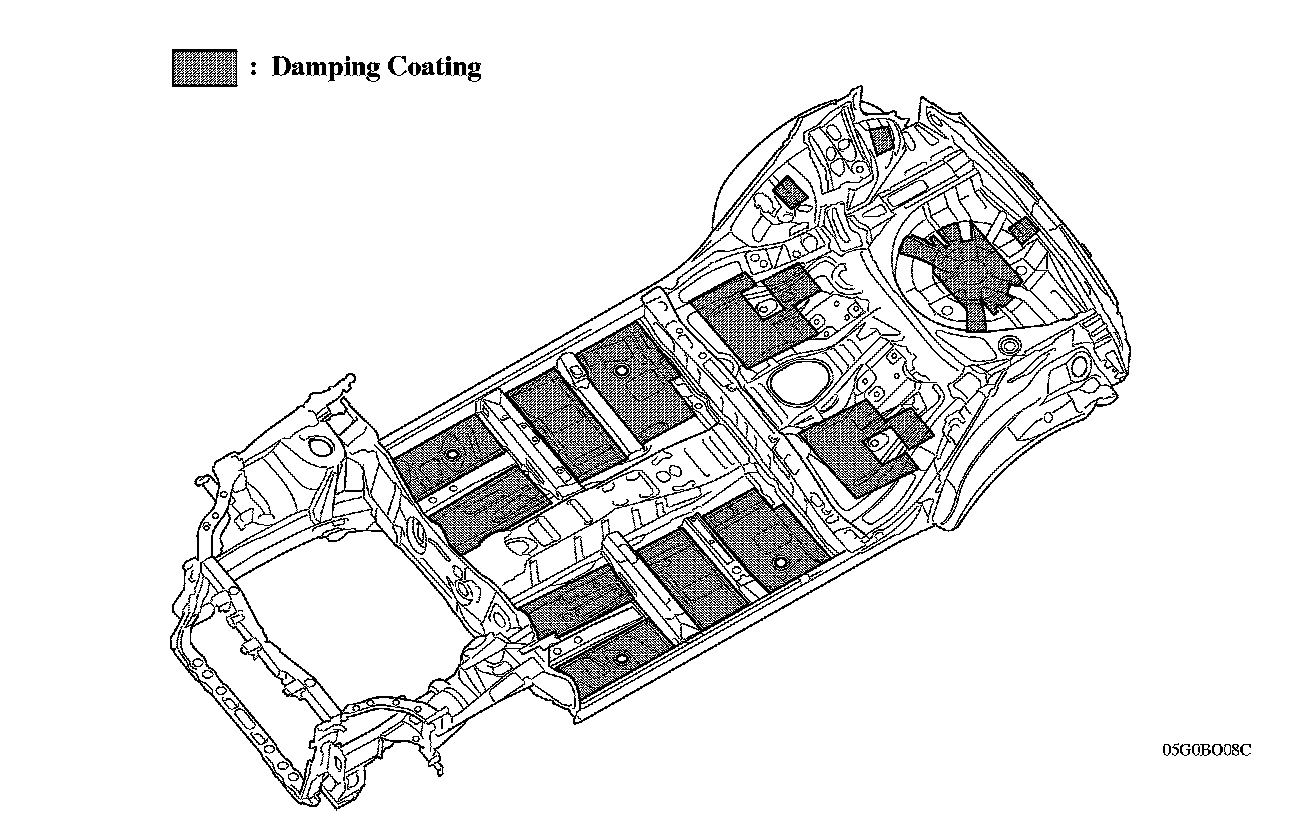

3. Under Body





Damping coatings are optimally arranged to reduce noise.
