Removal

EXTERIOR: REAR BUMPER: REMOVAL

REMOVAL





1. REMOVE REAR BUMPER PLATE LH

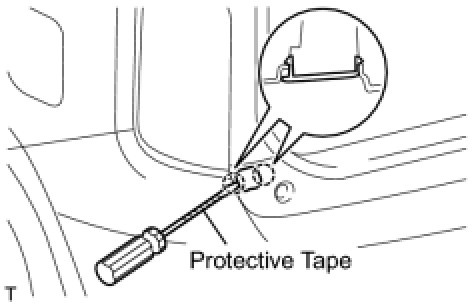

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the rear bumper plate.
2. REMOVE REAR BUMPER PLATE RH
HINT: Use the same procedure as for the LH side.

3. REMOVE REAR BUMPER COVER

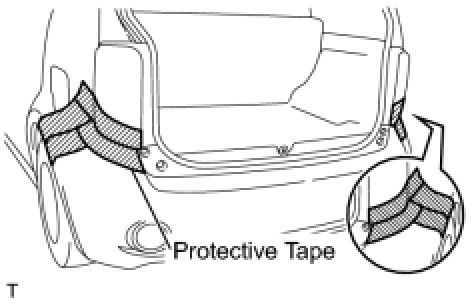

(a) Apply protective tape as shown in the illustration.





(b) Remove the 2 bolts and 2 screws.
(c) Remove the 6 clips.





(d) Disengage the 12 claws.
(e) Disconnect the connector and remove the rear bumper cover.
