EXTERIOR: REAR BUMPER: INSTALLATION

INSTALLATION

1. INSTALL REAR BUMPER COVER
(a) Connect the connector.

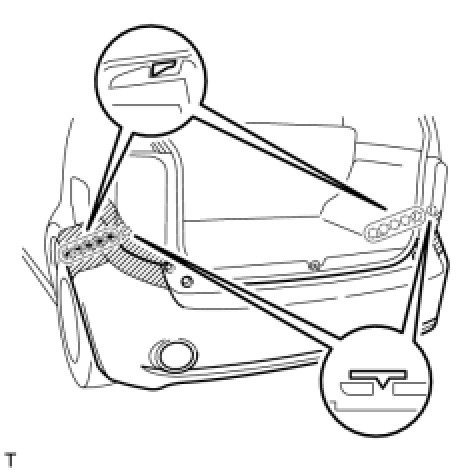

(b) Engage the 12 claws and install the rear bumper cover.

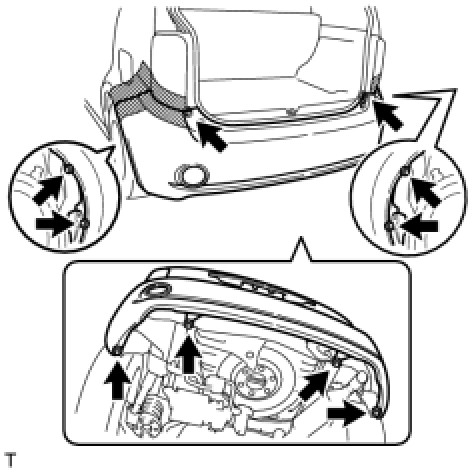

(c) Install the 6 clips.
(d) Tighten the 2 bolts and 2 screws.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
2. INSTALL REAR BUMPER PLATE LH

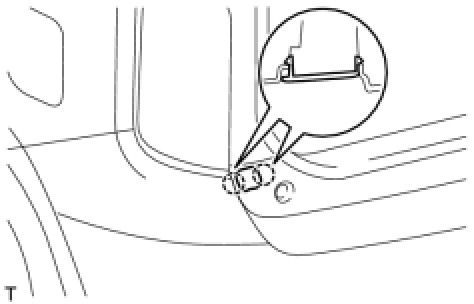

(a) Engage the 2 claws and install the rear bumper plate.
3. INSTALL REAR BUMPER PLATE RH
HINT: Use the same procedure as for the LH side.
