Disassembly

EXTERIOR: REAR BUMPER: DISASSEMBLY

DISASSEMBLY

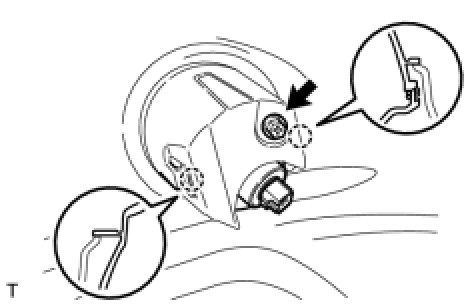

1. REMOVE BACK-UP LIGHT ASSEMBLY
(a) Disengage the 2 claws and remove the screw and remove the back-up light.





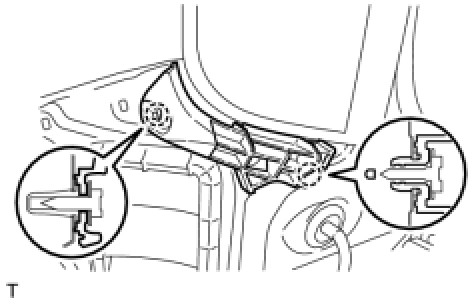

2. REMOVE REAR BUMPER SIDE RETAINER LH
(a) Remove the 2 screws.
(b) Disengage the 2 claws and remove the rear bumper side retainer.
3. REMOVE REAR BUMPER SIDE RETAINER RH
HINT: Use the same procedure as for the LH side.

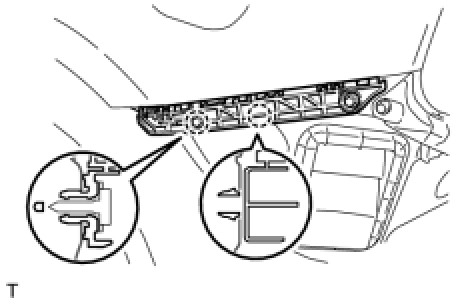

4. REMOVE REAR BUMPER UPPER RETAINER LH
(a) Remove the 2 screws.
(b) Disengage the 2 claws and remove the rear bumper upper retainer.
5. REMOVE REAR BUMPER UPPER RETAINER RH
HINT: Use the same procedure as for the LH side.

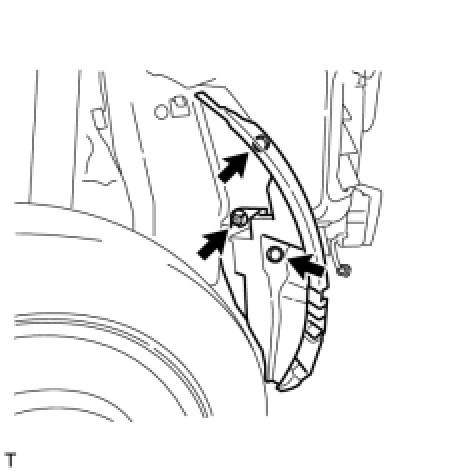

6. REMOVE REAR BUMPER SIDE SEAL LH
(a) Remove the 3 clips and the rear bumper side seal.

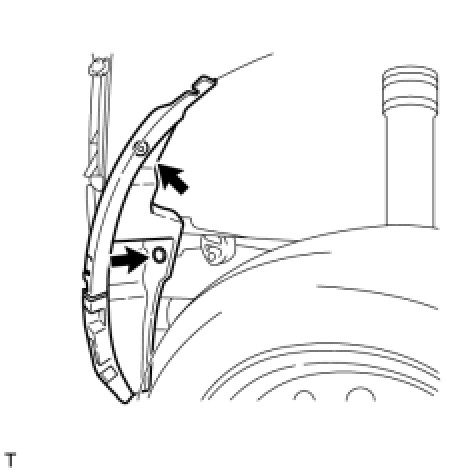

7. REMOVE REAR BUMPER SIDE SEAL RH
(a) Remove the 2 clips and the rear bumper side seal.

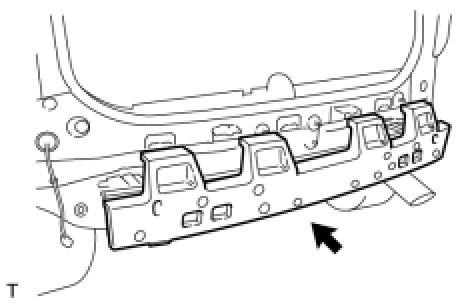

8. REMOVE REAR BUMPER ENERGY ABSORBER
(a) Remove the rear bumper energy absorber.

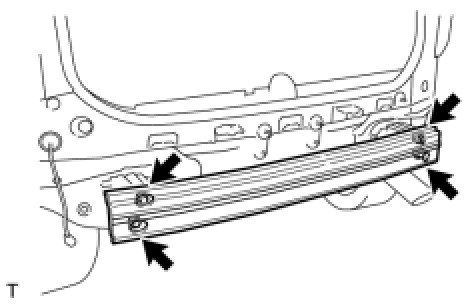

9. REMOVE NO. 1 REAR BUMPER REINFORCEMENT
(a) Remove the 4 nuts and the No. 1 rear bumper reinforcement.

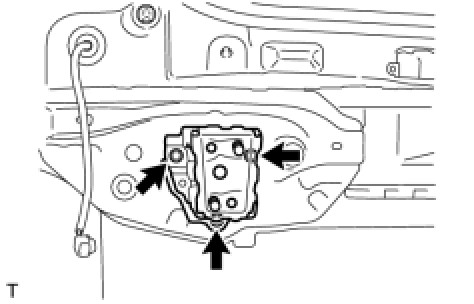

10. REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH
(a) Remove the 3 bolts and rear bumper arm.
11. REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH
HINT: Use the same procedure as for the LH side.
