Removal

EXTERIOR: FRONT BUMPER: REMOVAL

REMOVAL





1. REMOVE NO. 1 RADIATOR GRILLE GARNISH

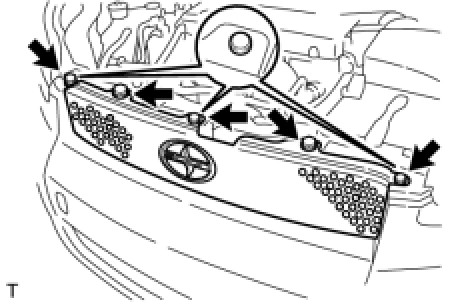

(a) Remove the 5 clips and the No. 1 radiator grille garnish.





2. REMOVE RADIATOR GRILLE

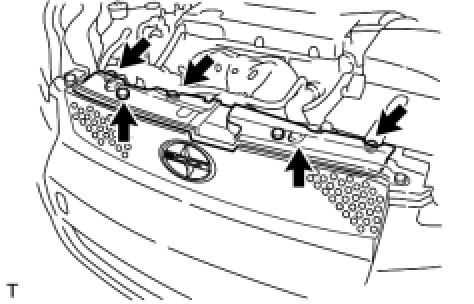

(a) Remove the 3 clips.
(b) Remove the 2 bolts and radiator grille.
3. REMOVE FRONT BUMPER COVER

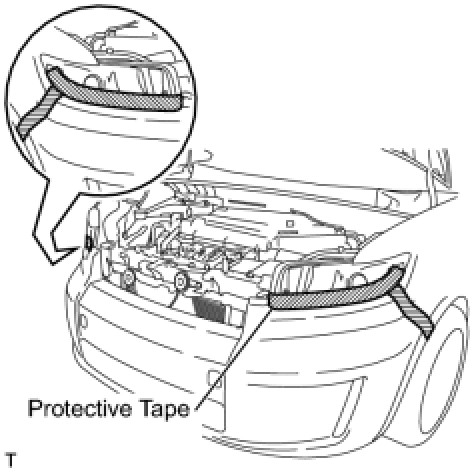

(a) Apply protective tape, as shown in the illustration.





(b) Using a screw driver, remove the pin hold clip.
HINT: Use the same procedure for the RH side and LH side.

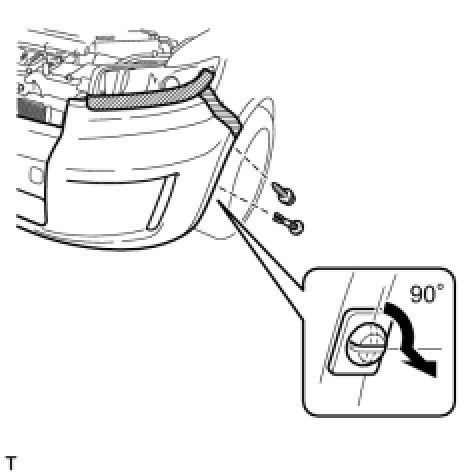

(c) Remove the screw.
HINT: Use the same procedure for the RH side and LH side.

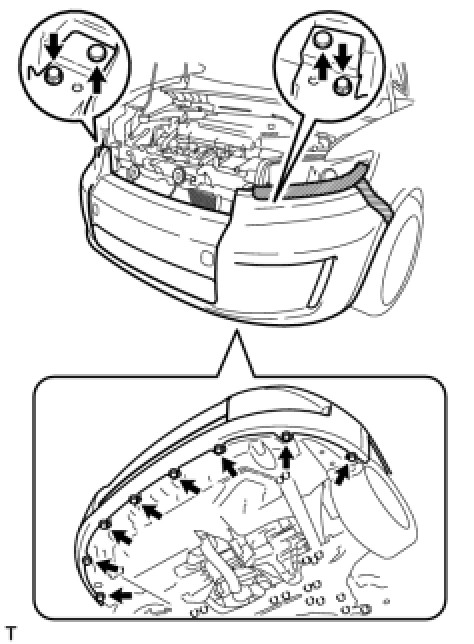

(d) Remove the 10 screws.

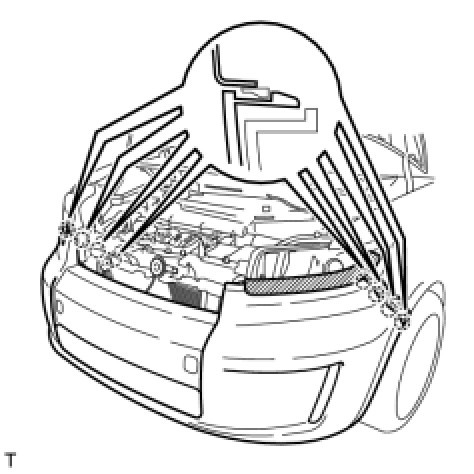

(e) Remove the 2 clips.





(f) Disengage the 8 claws and remove the front bumper cover.
