Reassembly

EXTERIOR: FRONT BUMPER: REASSEMBLY

REASSEMBLY

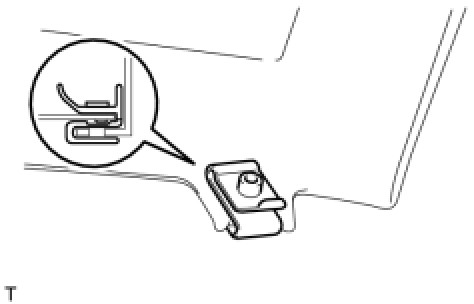

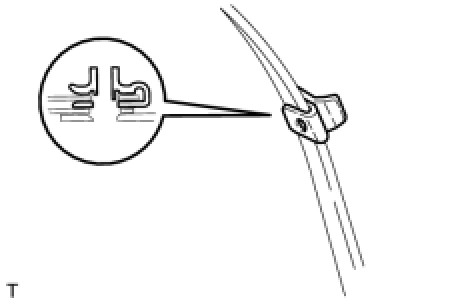

1. INSTALL FRONT BUMPER SIDE RETAINER LH
(a) Engage the claw and install the front bumper side retainer.
(b) Tighten the screw.
2. INSTALL FRONT BUMPER SIDE RETAINER RH
HINT: Use the same procedure as for the LH side.

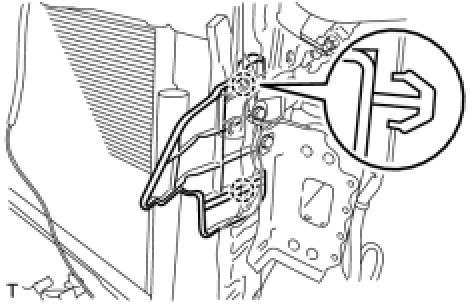

3. INSTALL RADIATOR SIDE DEFLECTOR LH

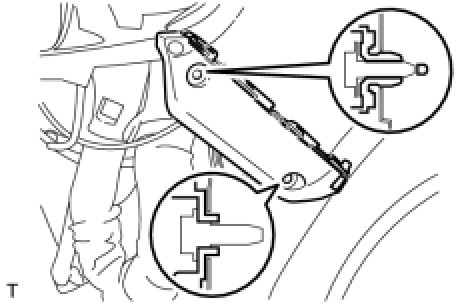

(a) Engage the 2 claws and install the radiator side deflector.
4. INSTALL RADIATOR SIDE DEFLECTOR RH
HINT: Use the same procedure as for the LH side.

5. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

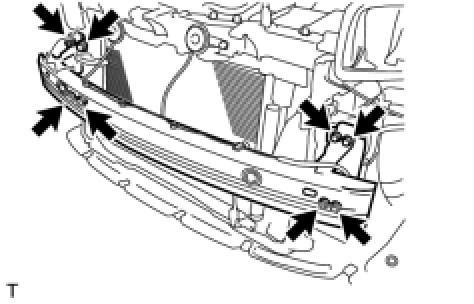

(a) Install the front bumper reinforcement with 8 bolts.
Torque: 50 Nm (510 kgf-cm, 37 ft-lbf)

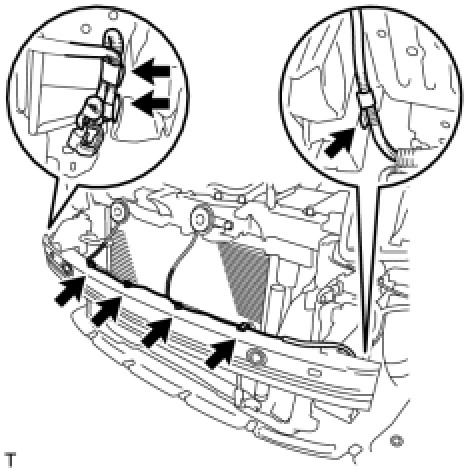

(b) Install the engine room main wire with the 7 clamps.





6. INSTALL FRONT BUMPER ENERGY ABSORBER

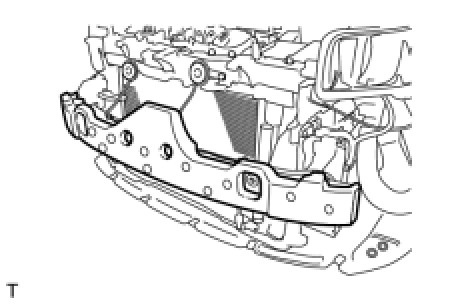

(a) Install the front bumper energy absorber.





7. INSTALL FRONT BUMPER HOLE COVER LH

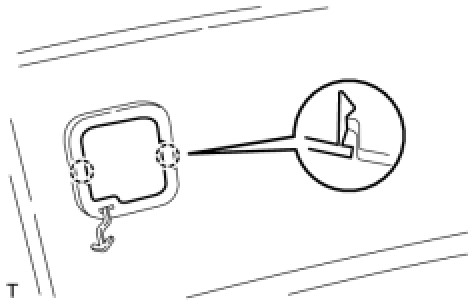

(a) Engage the 2 claws and install the front bumper hole cover.
8. INSTALL FRONT BUMPER HOLE COVER RH
HINT: Use the same procedure as for the LH side.





9. INSTALL FRONT BUMPER SIDE MOULDING LH

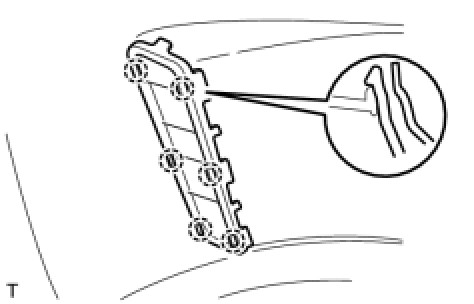

(a) Engage the 6 claws and install the front bumper side moulding.
10. INSTALL FRONT BUMPER SIDE MOULDING RH
HINT: Use the same procedure as for the LH side.





11. INSTALL RADIATOR LOWER GRILLE

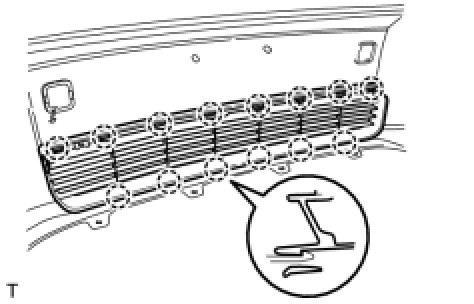

(a) Engage the 14 claws and install the radiator lower grille.





12. INSTALL CLIP
(a) Install the 2 clips.





13. INSTALL FRONT FENDER LINER RETAINER
(a) Install the 2 front fender liner retainers.
