Installation

EXTERIOR: FRONT BUMPER: INSTALLATION

INSTALLATION

1. INSTALL FRONT BUMPER COVER





(a) Engage the 8 claws and install the front bumper cover.





(b) Install the 2 clips.
(c) Tighten the 10 screws.

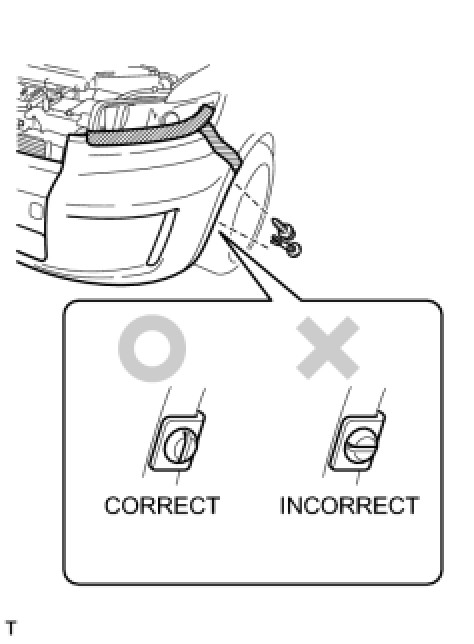

(d) Install the pin hold clip.
NOTICE: Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is vertically.
HINT: Use the same procedure for the RH side and LH side.

(e) Install the screw.
HINT: Use the same procedure for the RH side and LH side.





2. INSTALL RADIATOR GRILLE
(a) Install the radiator grille with 2 bolts.
(b) Install the 3 clips.





3. INSTALL NO. 1 RADIATOR GRILLE GARNISH
(a) Install the No. 1 radiator grille garnish with the 5 clips.
