AUDIO / VISUAL: AMPLIFIER ANTENNA: INSTALLATION

INSTALLATION

1. INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY Installation
2. INSTALL AMPLIFIER ANTENNA ASSEMBLY

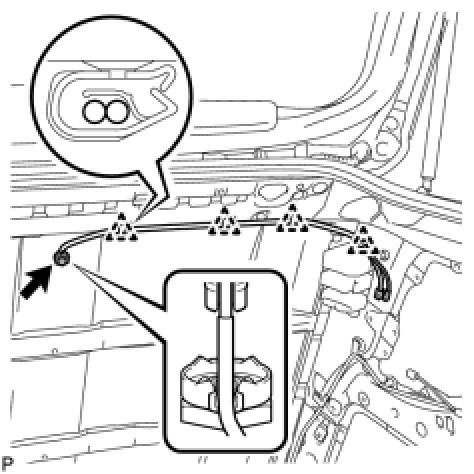

(a) Engage the 2 claws and install the amplifier antenna.





(b) Place the amplifier antenna cord in the amplifier antenna cutout.
(c) Install the amplifier antenna with the nut.
Torque: 4.5 Nm (45 kgf-cm, 40 in-lbf)
(d) Install the amplifier antenna cord into the 4 clamps.
3. INSTALL ROOF HEADLINING
(a) Install the roof headlining Installation.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
5. INSPECT SRS WARNING LIGHT
Diagnosis System
