Meter / Gauge System

METER: METER / GAUGE SYSTEM: U0100: Lost Communication with ECM / PCM "A"

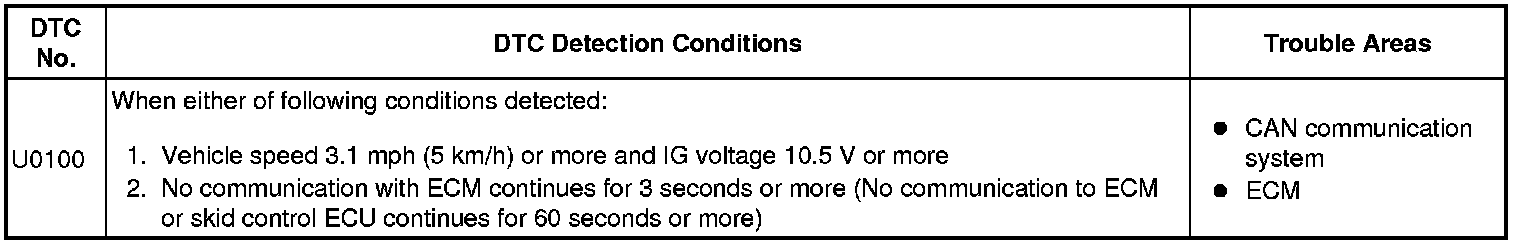

DTC U0100 - Lost Communication with ECM / PCM "A"

DESCRIPTION

The combination meter assembly and the ECM exchange signals through the CAN communication system.






WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CONFIRM DTC OUTPUT
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch on (IG) and turn the tester on.
(c) Check for DTCs and note any codes that are output Reading and Clearing Diagnostic Trouble Codes.
(d) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.
(e) Recheck for DTC Reading and Clearing Diagnostic Trouble Codes.
Result:






B -- USE SIMULATION METHOD TO CHECK
A -- GO TO CAN COMMUNICATION SYSTEM
