P060D

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P060D: Internal Control Module Accelerator Pedal Position Performance

DTC P060D - Internal Control Module Accelerator Pedal Position Performance

MONITOR DESCRIPTION

The ECM monitors the input signals of the Accelerator Pedal Position (APP) sensor No. 1. When the input signals and control signals are deviated, the DTC is output.

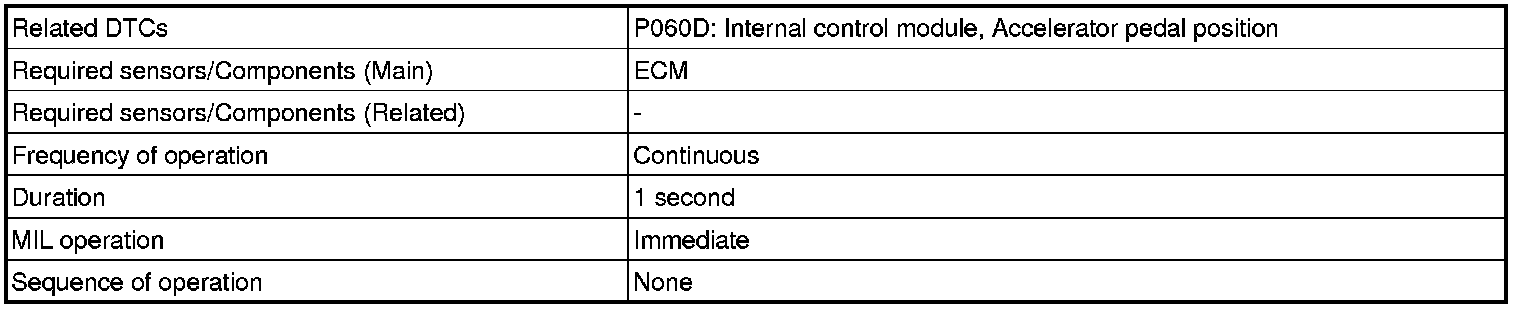

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. READ OUTPUT DTC (DTC P060D)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream ON.
(d) Clear DTC DTC Check / Clear.
(e) Turn the ignition switch to OFF and turn the Techstream OFF.
(f) Disconnect the Techstream.
(g) Disconnect the cable from the battery negative (-) terminal and wait for 1 minute.
(h) Connect the cable to the battery negative (-) terminal.
(i) Connect the Techstream to the DLC3.
(j) Turn the ignition switch to ON.
(k) Turn the Techstream ON.
(l) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.
(m) Read DTCs.

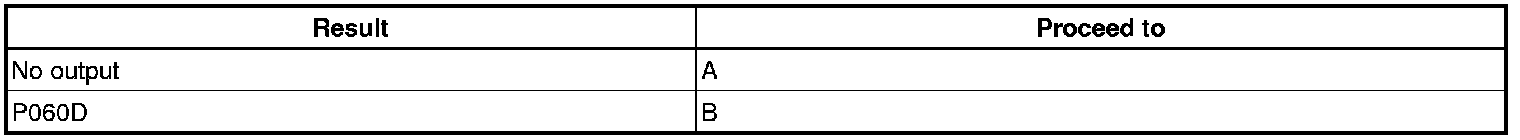

Result





B -- REPLACE ECM
A -- CHECK FOR INTERMITTENT PROBLEMS
