POWER STEERING: POWER STEERING SYSTEM: C1551: IG Power Supply Voltage Malfunction

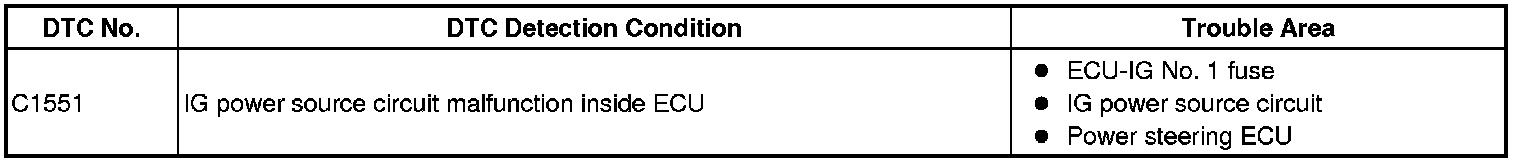

DTC C1551 - IG Power Supply Voltage Malfunction

DESCRIPTION

The power steering ECU distinguishes the ignition switch status as ON or OFF through the IG power source circuit.

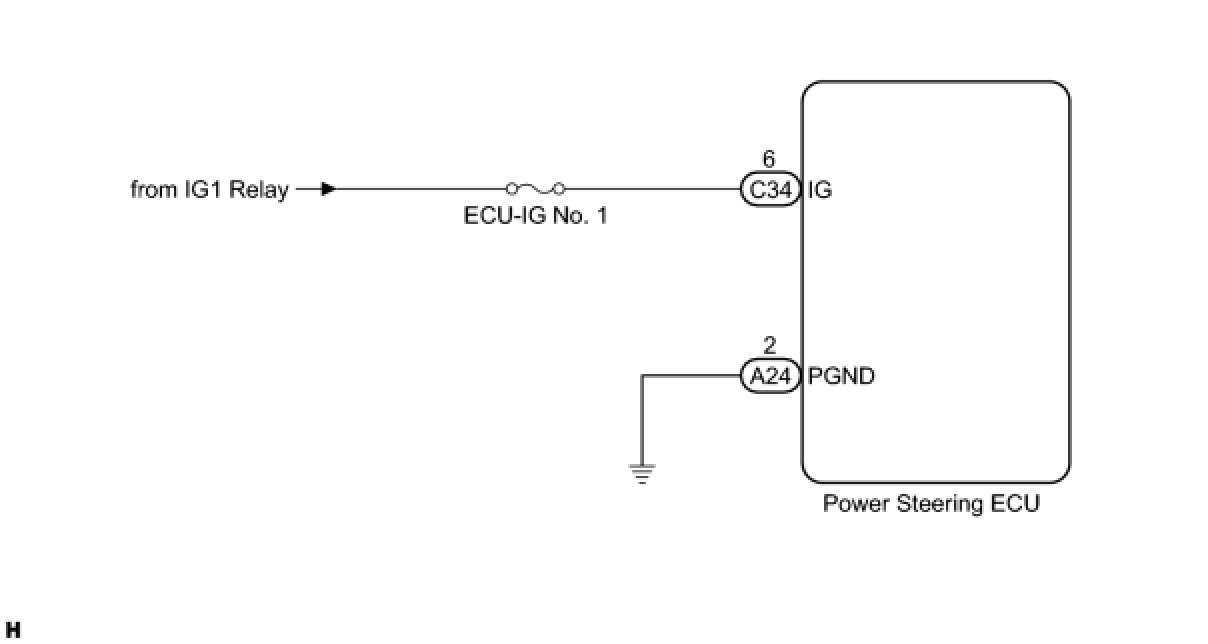

WIRING DIAGRAM





INSPECTION PROCEDURE
NOTICE: If the steering column or power steering ECU has been replaced, perform the rotation angle sensor initialization and torque sensor zero point calibration Programming and Relearning.

PROCEDURE

1. READ VALUE USING TECHSTREAM (IG POWER SUPPLY)
(a) Turn the ignition switch to OFF.
(b) Connect the Techstream to the DLC3.
(c) Turn the ignition switch to ON.
(d) Turn the Techstream on.
(e) Enter the following menus: Chassis / EMPS / Data List /

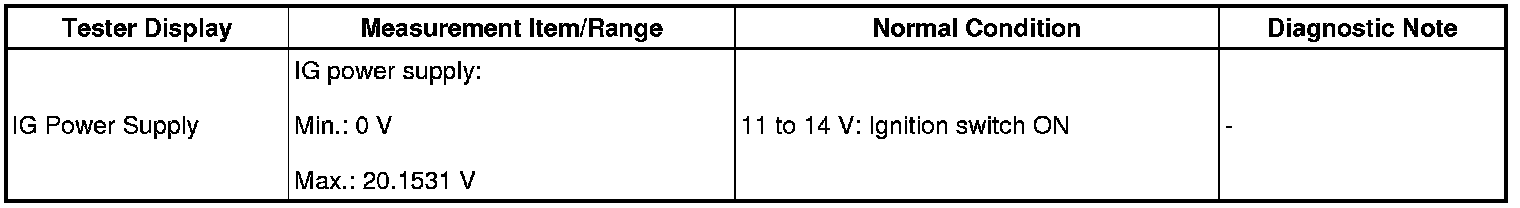

(f) Select the item "IG Power Supply" in the Data List and read the value displayed on the Techstream.

EMPS:





OK:
The normal condition value is displayed on the Techstream.
NG -- INSPECT FUSE (ECU-IG NO. 1)
OK -- CHECK INTERMITTENT PROBLEMS
2. INSPECT FUSE (ECU-IG NO. 1)
(a) Remove the ECU-IG No. 1 fuse from the main body ECU.
(b) Measure the resistance of the fuse.
Standard resistance:






NG -- REPLACE FUSE
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (BATTERY - POWER STEERING ECU)




(a) Disconnect the connectors from the power steering ECU.
(b) Measure the voltage according to the value(s) in the table below.

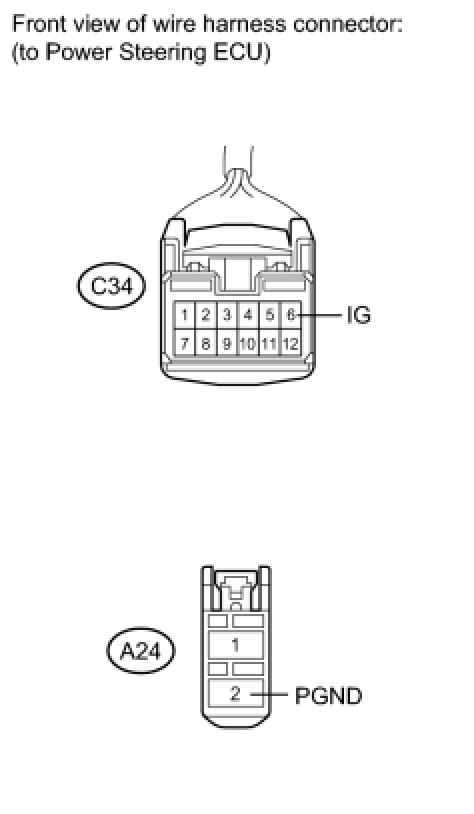

Standard voltage:





(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE POWER STEERING ECU
