Installation

WIPER AND WASHER: FRONT WIPER RUBBER: INSTALLATION

FRONT WIPER RUBBER: INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL WIPER RUBBER LH

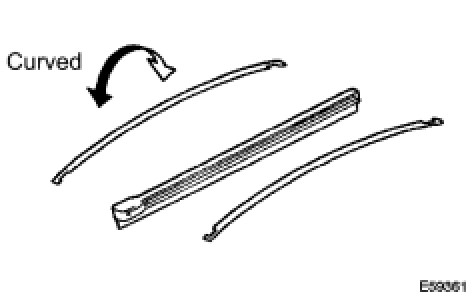

(a) Install the 2 wiper rubber backing plates to the wiper rubber LH.
NOTICE: Be sure to install the wiper rubber backing plates in the correct direction.

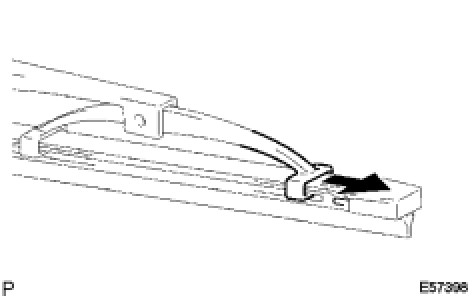

(b) Install the wiper rubber LH so that the head part (longer side) of the wiper rubber faces the arm axle side.
2. INSTALL FRONT WIPER BLADE LH
(a) Install the front wiper blade LH to the front wiper arm LH.
