Wiper and Washer Systems: Testing and Inspection

WIPER AND WASHER: WIPER AND WASHER SYSTEM: PROBLEM SYMPTOMS TABLE

WIPER AND WASHER SYSTEM: PROBLEM SYMPTOMS TABLE

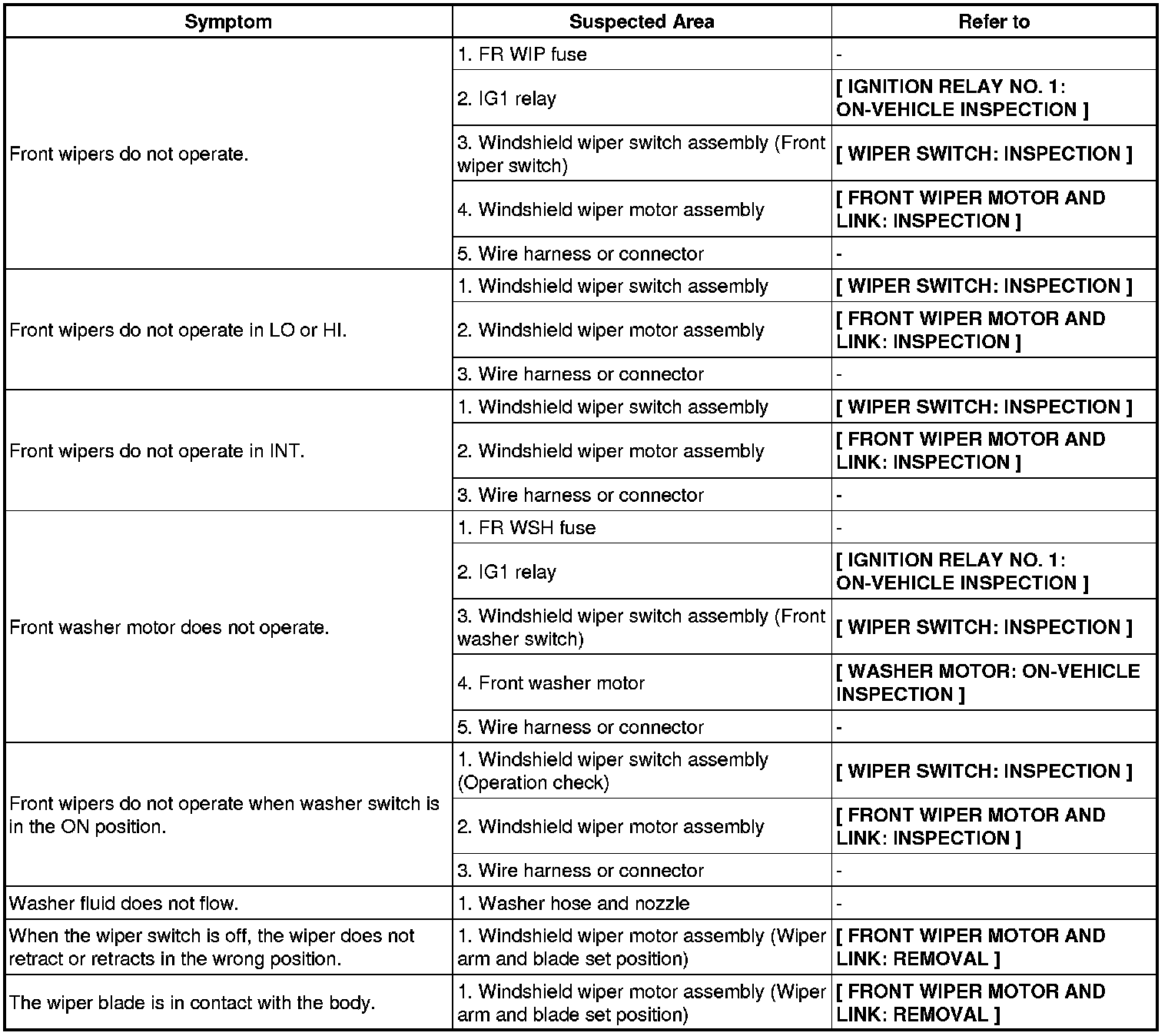

HINT: Use the table below, with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps.

Wiper and washer system
