Front Passenger Side Power Window Auto Up / Down Function Does Not Operate With Front Passenger Side Power Window Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch

Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch

DESCRIPTION

The power window regulator switch controls the passenger side power window and activates the passenger side power window motor.
If the AUTO UP/DOWN function does not operate, the cause may be one or more of the following:

- The recorded power window fully closed position, which is stored in the power window regulator switch, was erased as a result of the battery terminal cable or the power window switch connector being disconnected.
- The pulse sensor in the power window regulator motor has a malfunction.
- The wiring between the power regulator window switch and the corresponding power window regulator motor is open or short circuited.
- The power window regulator switch has a malfunction.

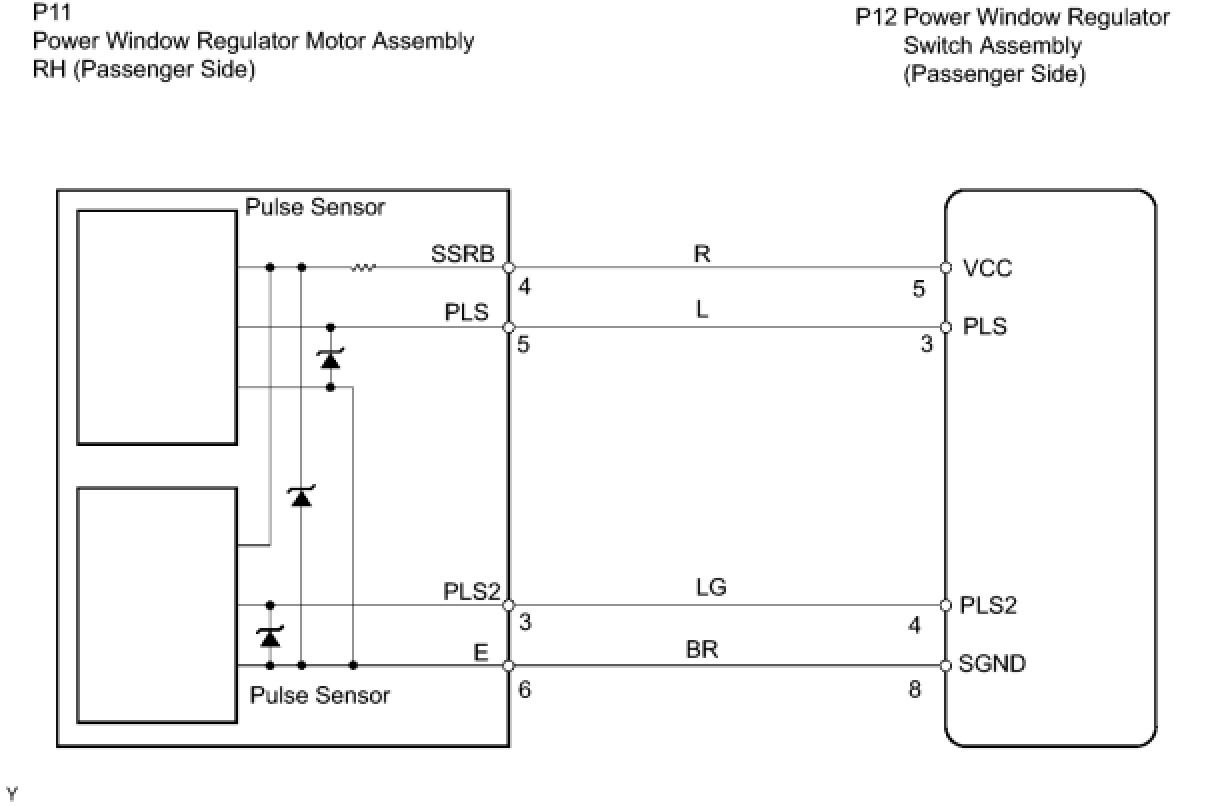

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK MANUAL UP/DOWN FUNCTION (PASSENGER SIDE)
(a) Check that the power window manual UP/DOWN function operates normally.
NG -- OTHER PROBLEM
OK -- Continue to next step.
2. CHECK LIGHT OF POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)




(a) Turn the ignition switch ON.

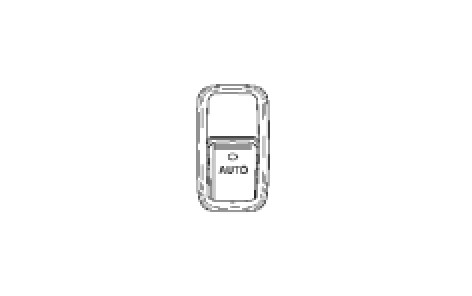

(b) Operate the power window regulator switch.

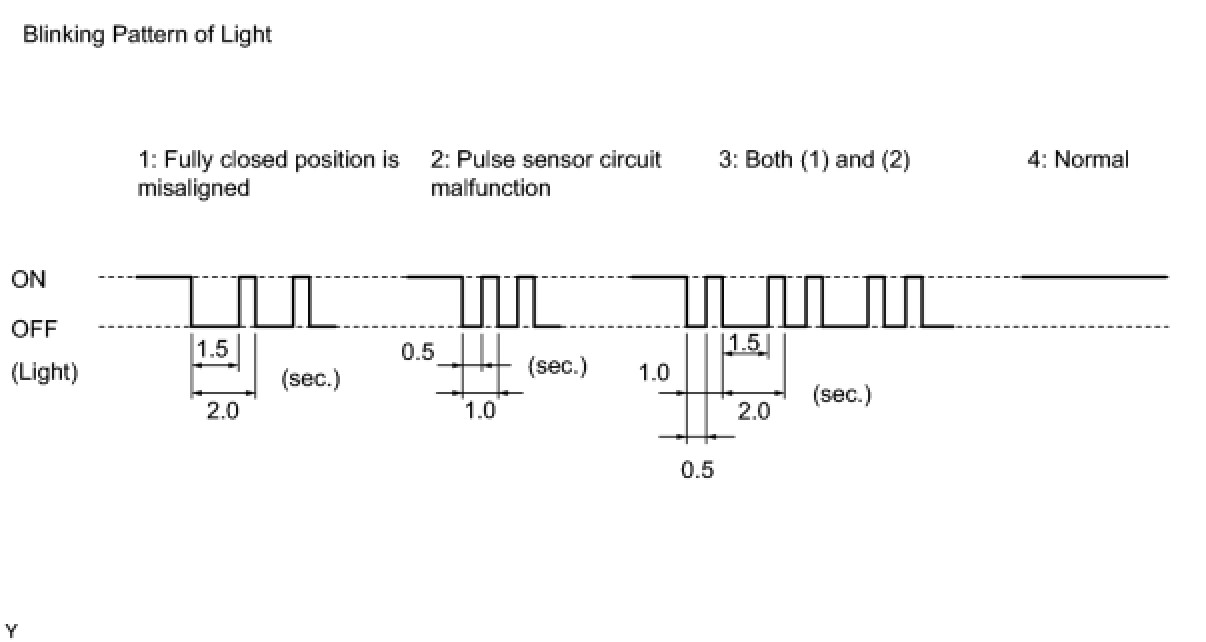

(c) Check the blinking pattern of the light as shown in the illustration below.

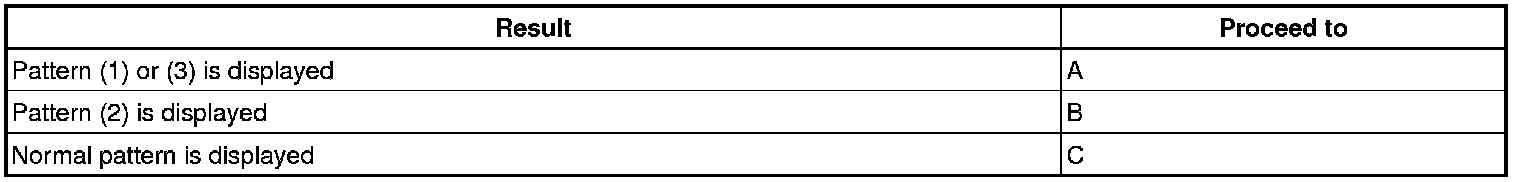

Result:









C -- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)
B -- CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)
A -- Continue to next step.
3. RESET POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (PASSENGER SIDE)
OK -- END
NG -- Continue to next step.
4. CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)

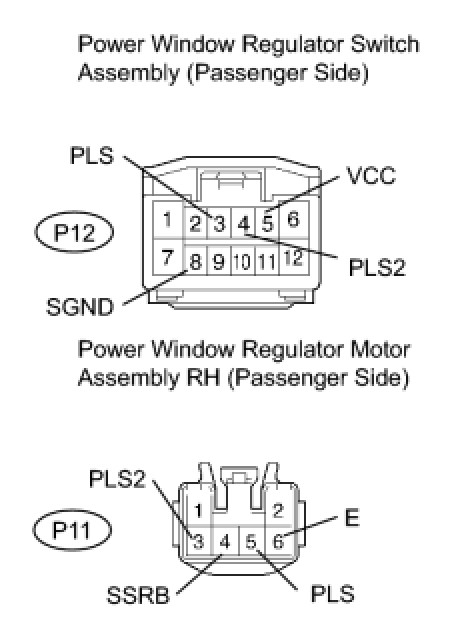

(a) Disconnect the P12 regulator switch connector.
(b) Disconnect the P11 power window motor connector.
(c) Measure the resistance of the wire harness side connectors.

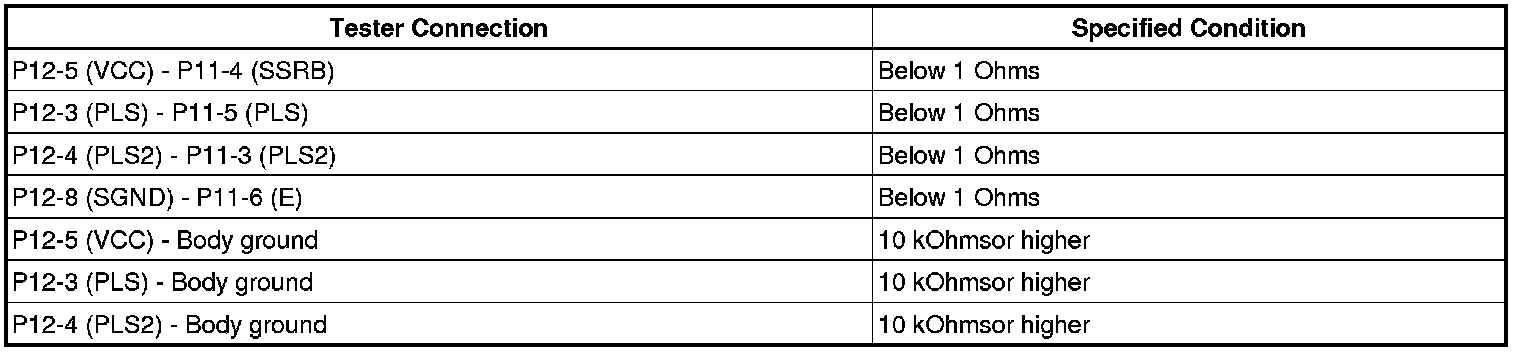

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (PASSENGER SIDE)
