Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch

Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch

DESCRIPTION

The power window regulator master switch controls the driver side power window and activates the driver side power window motor. If a malfunction is found in the pulse sensor during motor operation, the fail-safe function will stop UP/DOWN operation.
If the AUTO UP/DOWN function does not operate, the cause may be one or more of the following:

- The recorded power window fully closed position, which is stored in the power window regulator master switch, was erased as a result of the battery terminal cable or the power window regulator master switch connector being disconnected.
- The pulse sensor in the power window regulator motor has a malfunction.
- The wiring between the power window regulator master switch and the corresponding power window regulator motor is open or short circuited.
- The power window regulator master switch has a malfunction.

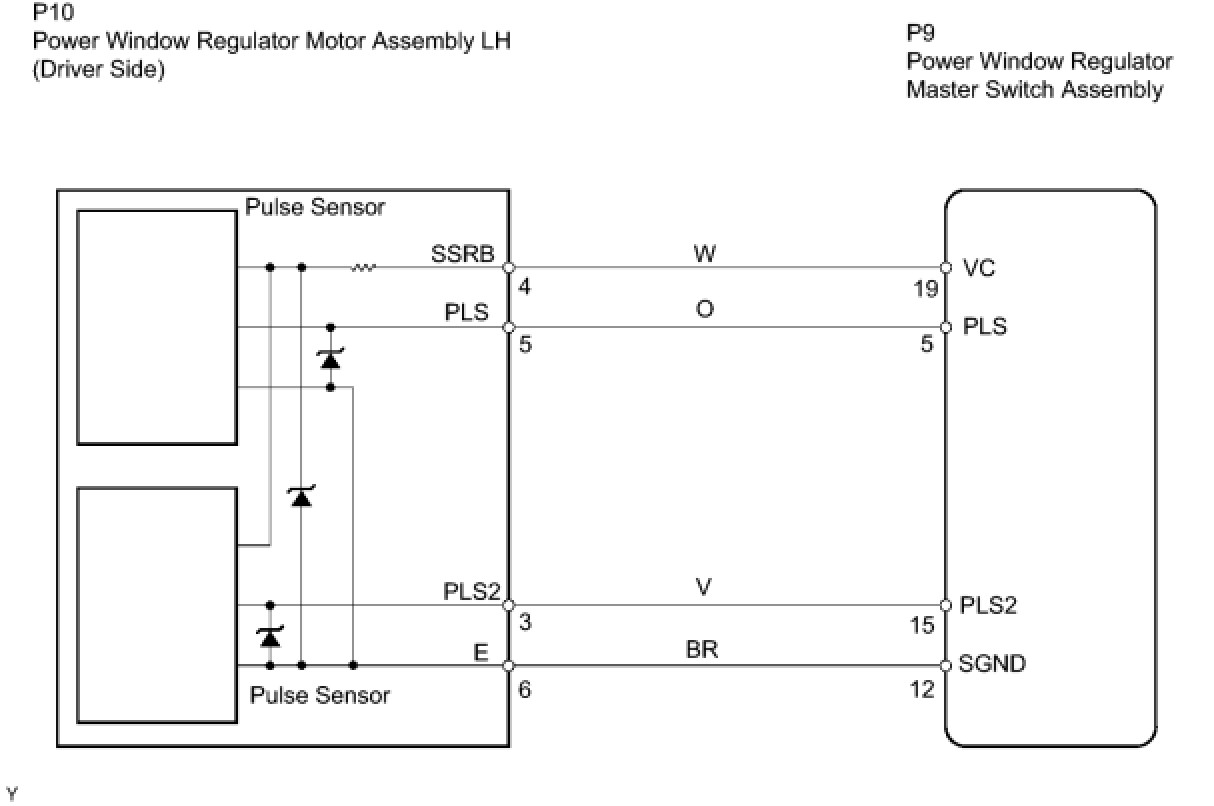

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK MANUAL UP/DOWN FUNCTION (DRIVER SIDE)
(a) Check that the power window manual UP/DOWN function operates normally.
NG -- OTHER PROBLEM
OK -- Continue to next step.
2. CHECK LIGHT OF POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DRIVER SIDE SWITCH)




(a) Turn the ignition switch ON.

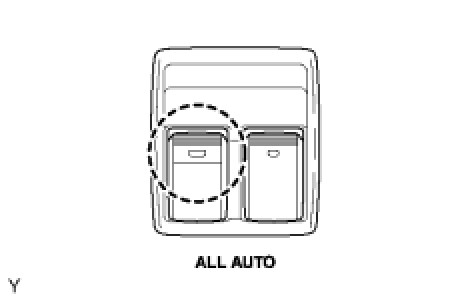

(b) Operate the driver side switch on the master switch.

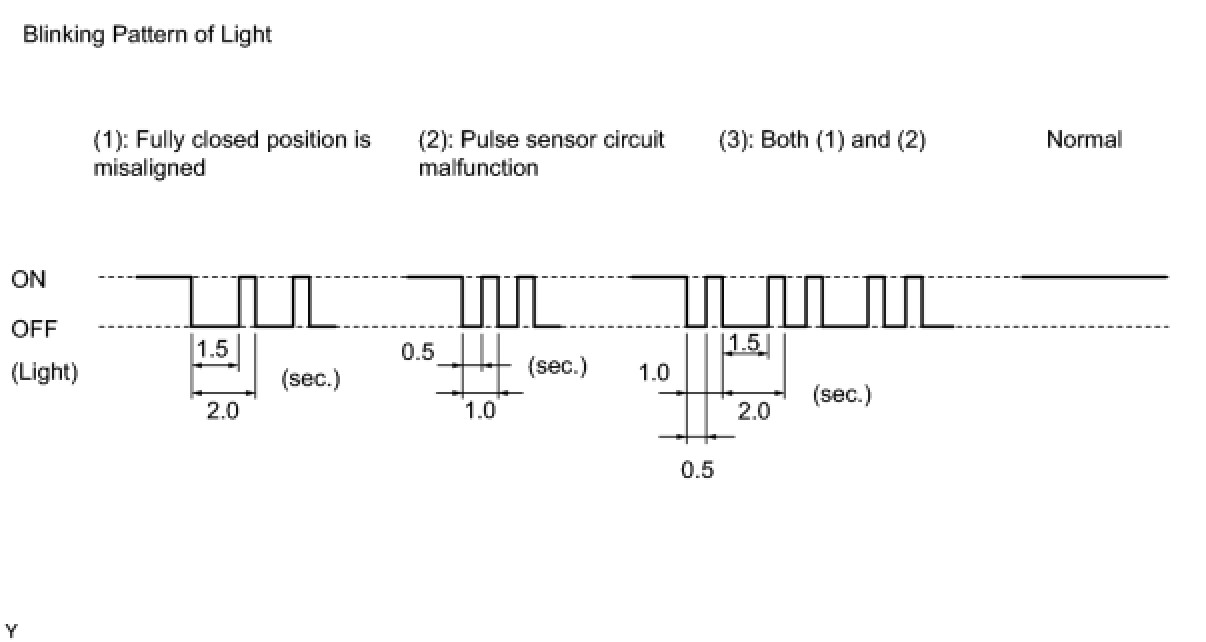

(c) Check the blinking pattern of the AUTO light as shown in the illustration.

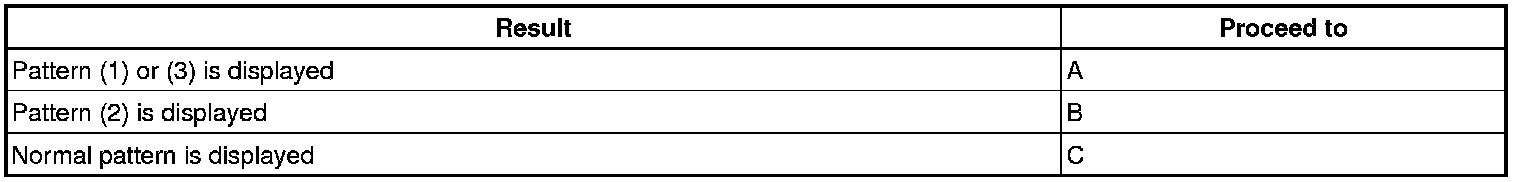

Result:









C -- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DRIVER SIDE)
B -- CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
A -- Continue to next step.
3. RESET POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (DRIVER SIDE)
OK -- END
NG -- Continue to next step.
4. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)




(a) Disconnect the P9 master switch connector.
(b) Disconnect the P10 motor connector.

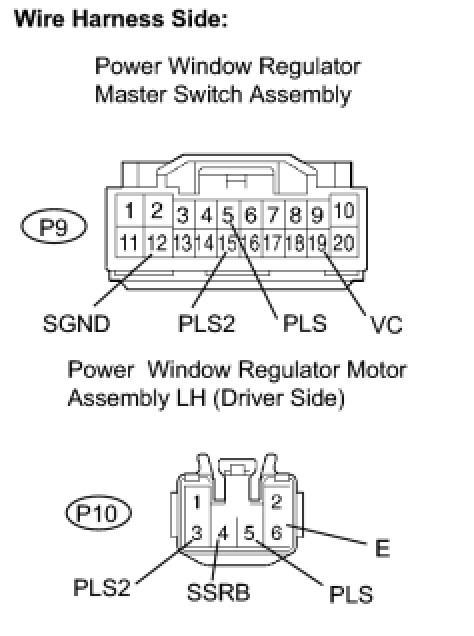

(c) Measure the resistance of the wire harness side connectors.

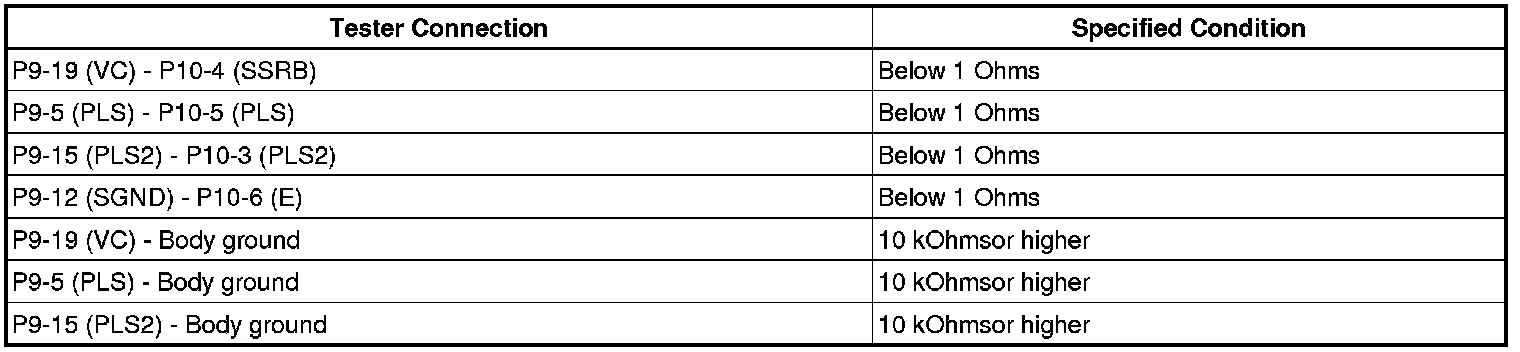

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (DRIVER SIDE)
