Removal

E350 MANUAL TRANSAXLE: SHIFT LEVER ASSEMBLY: REMOVAL

SHIFT LEVER ASSEMBLY: REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
2. REMOVE CONSOLE PANEL UPPER Removal
3. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY UPPER Removal
4. REMOVE REAR CONSOLE BOX ASSEMBLY Removal
5. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

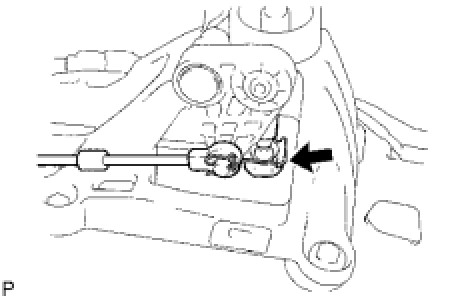

(a) Remove the 2 clips, and disconnect the cable ends of the control.

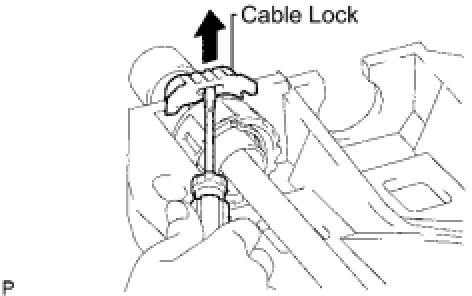

(b) Using a screwdriver, release the cable locks of the shift cable and select cable.

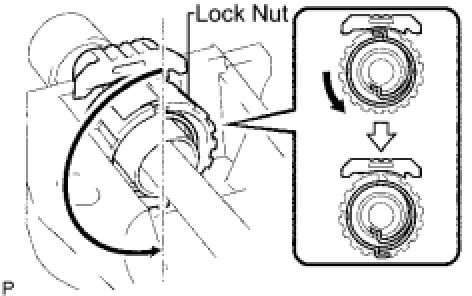

(c) Turn the lock nuts 180° counterclockwise, and hold them in that position to remove the shift cable and select cable.
NOTICE: Do not push in the cable locks.





6. REMOVE FLOOR SHIFT SHIFT LEVER ASSEMBLY

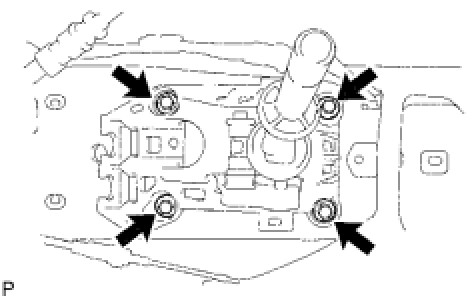

(a) Remove the 4 bolts and shift lever.
