E350 MANUAL TRANSAXLE: SHIFT LEVER ASSEMBLY: INSTALLATION

SHIFT LEVER ASSEMBLY: INSTALLATION





1. INSTALL FLOOR SHIFT SHIFT LEVER ASSEMBLY
(a) Install the shift lever with the 4 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

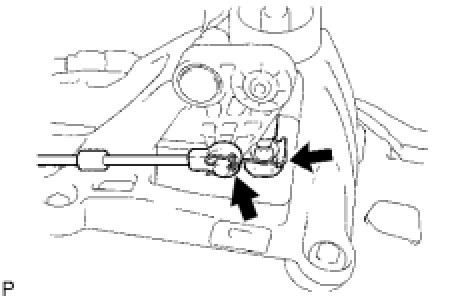

(a) Connect the ends of the control cable and install the 2 clips to the shift lever.

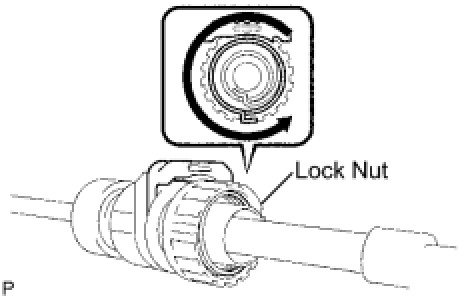

(b) Turn the lock nuts of the shift cable 270° counterclockwise, and hold them in that position.
(c) Install the shift cable and select cable while holding the lock nuts.
(d) Check that the cables are installed securely.

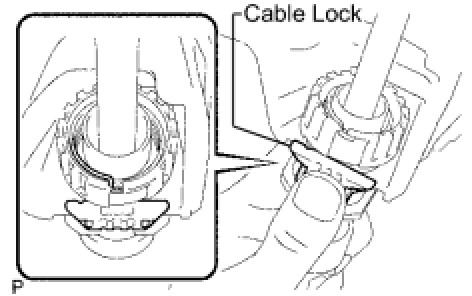

(e) Push in the cable locks of the shift cable and select cable.
3. INSTALL REAR CONSOLE BOX ASSEMBLY Installation
4. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY UPPER Installation
5. INSTALL CONSOLE PANEL UPPER Installation
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
