Removal

E350 MANUAL TRANSAXLE: SHIFT AND SELECT LEVER SHAFT: REMOVAL

SHIFT AND SELECT LEVER SHAFT: REMOVAL





1. REMOVE SHIFT AND SELECT LEVER BUSH
(a) Remove the bush from the No. 2 selecting bellcrank.





2. REMOVE NO. 1 SELECTING BELLCRANK DUST COVER
(a) Remove the dust cover from the No. 2 selecting bellcrank.
3. REMOVE SELECTING BELLCRANK SUPPORT SUB-ASSEMBLY





(a) Remove the nut, wave washer and No. 2 selecting bellcrank plate washer from the No. 2 selecting bellcrank.





(b) Remove the selecting bellcrank support from the No. 2 selecting bellcrank.





4. REMOVE NO. 2 SELECTING BELLCRANK DUST COVER
(a) Remove the dust cover from the No. 2 selecting bellcrank.





5. REMOVE NO. 2 SELECTING BELLCRANK BUSH
(a) Remove the bushes from the No. 2 selecting bellcrank.
6. REMOVE NO. 2 SHIFT LEVER INNER





(a) Hold the shift and select lever shaft in a vise with soft jaws.
NOTICE: Do not damage the shift and select lever shaft.

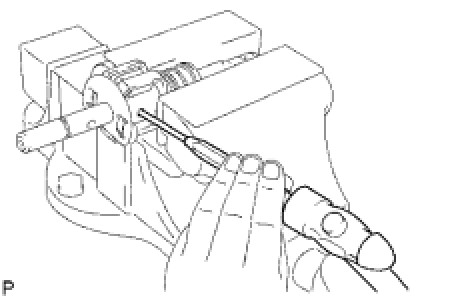

(b) Using a 5 mm pin punch and a hammer, tap out the slotted pin and remove the transmission oil baffle.

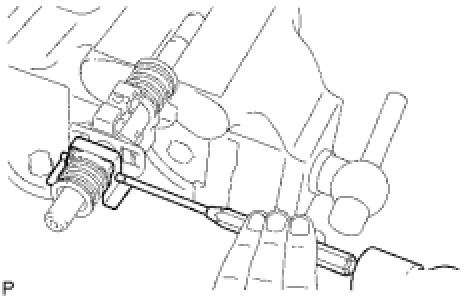

(c) Apply force to the No. 2 select return compression spring, then using 2 screwdrivers and a hammer, tap out the No. 2 select spring seat shaft snap ring from the shift and select lever shaft.
(d) Remove the No. 2 select spring seat, No. 2 select return compression spring and No. 2 shift lever inner.
NOTICE: Use a cloth to prevent the snap ring from flying off.

7. REMOVE NO. 1 SELECT SPRING SEAT





(a) Using a 5 mm pin punch and a hammer, remove the slotted pin from the shift and select lever shaft.





(b) Remove the shift inter lock plate assembly, shift lever assembly, No. 1 select return compression spring and No. 1 select spring seat from the shift and select lever shaft.





8. REMOVE SHIFT INTER LOCK PLATE COVER
(a) Remove the shift inter lock plate cover from the shift inter lock plate.





9. REMOVE NO. 1 SHIFT LEVER INNER
(a) Remove the No. 1 shift lever inner from the shift inter lock plate.





10. REMOVE NO. 1 SELECT SPRING SEAT SHAFT SNAP RING
(a) Using 2 screwdrivers and a hammer, tap out the snap ring.
11. REMOVE SHIFT AND SELECT LEVER SHAFT DUST BOOT
(a) Remove the dust boot from the control shaft cover.
12. REMOVE CONTROL SHAFT COVER OIL SEAL





(a) Using a screwdriver, remove the oil seal from the control shaft cover.
HINT: Tape the screwdriver tip before use to avoid damage.
