Components









E350 MANUAL TRANSAXLE: SHIFT AND SELECT LEVER SHAFT: COMPONENTS

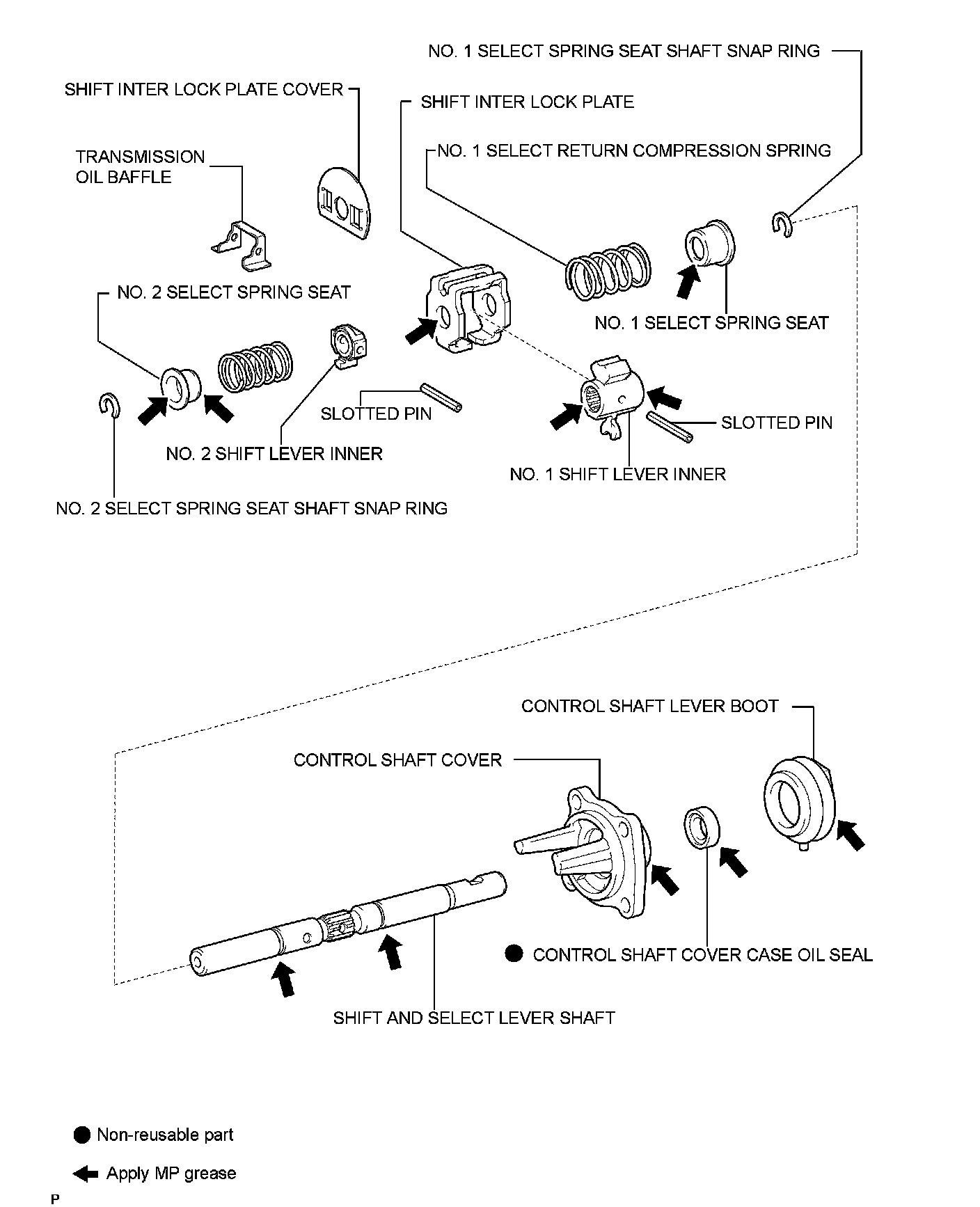

SHIFT AND SELECT LEVER SHAFT: COMPONENTS
