Home >> Scion >> 2009 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Tools and Equipment >> Axle >> SST

SST

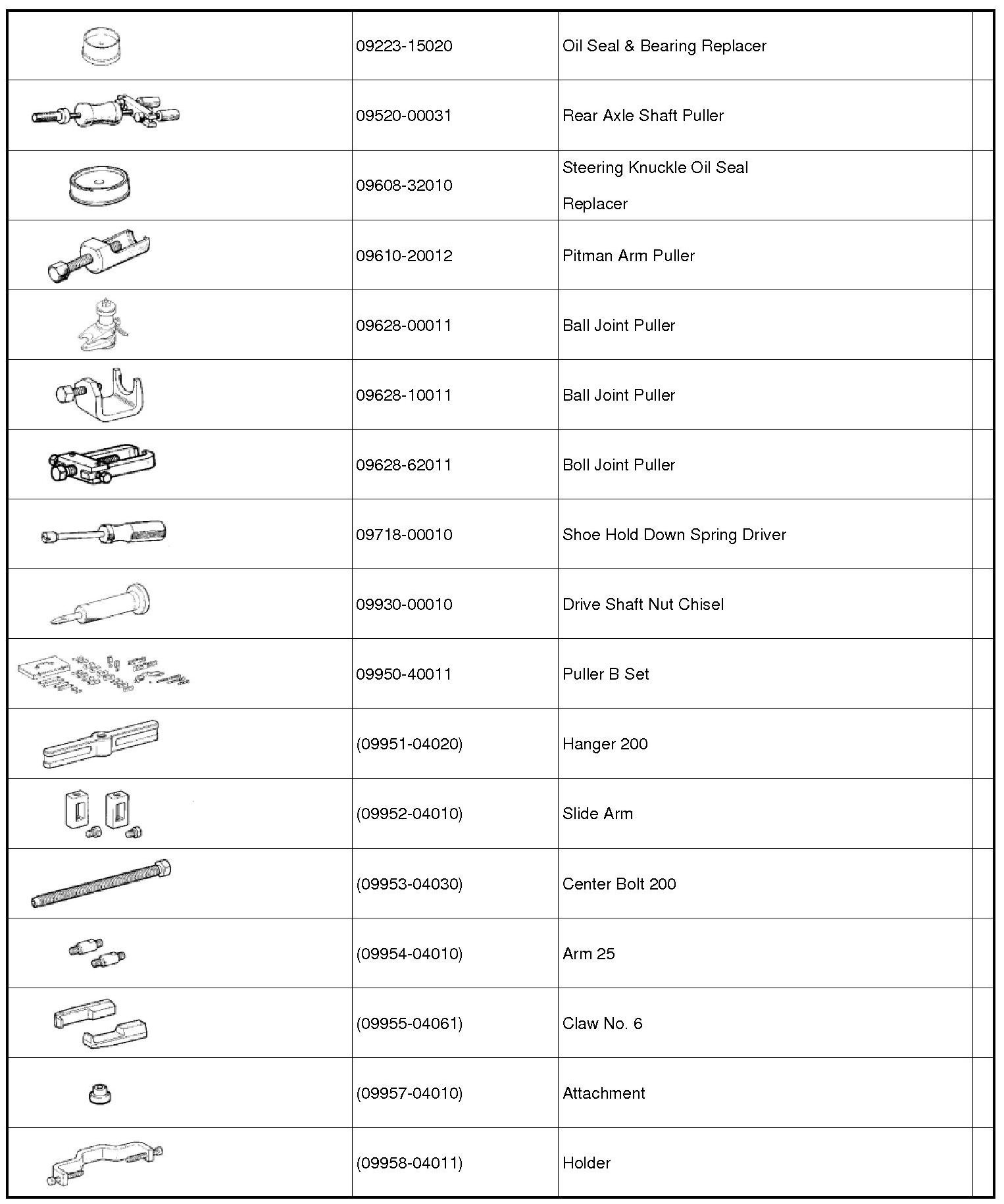

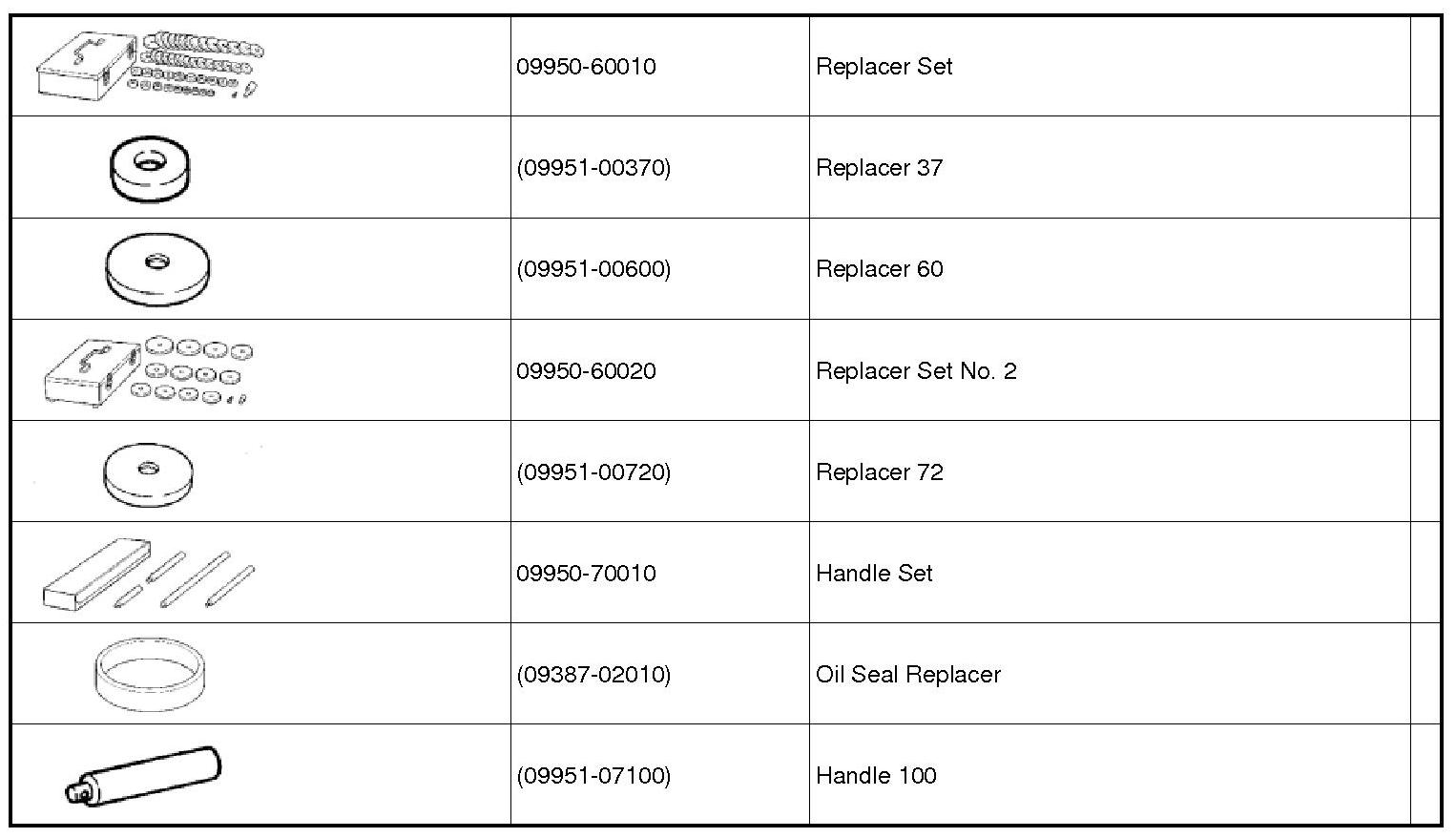

PREPARATION: AXLE: SST

AXLE: SST
