Disassembly

CLUTCH: CLUTCH PEDAL: DISASSEMBLY

CLUTCH: CLUTCH PEDAL: DISASSEMBLY

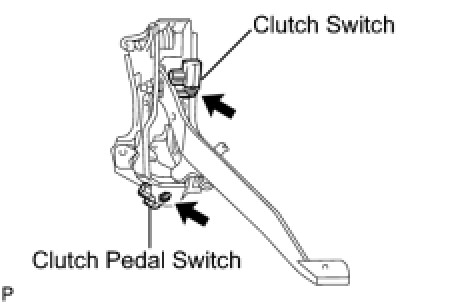

1. REMOVE CLUTCH PEDAL SWITCH ASSEMBLY
(a) Remove the nut and clutch pedal switch.
2. REMOVE CLUTCH SWITCH ASSEMBLY
(a) Remove the nut and clutch switch.

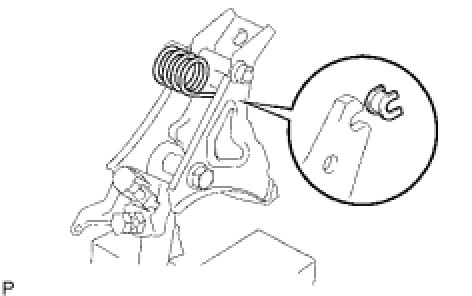

3. REMOVE TURN OVER SPRING SEAT COMPRESSION SPRING
(a) Mount the clutch pedal in a soft jaw vise.
(b) Using a screwdriver, remove the spring.
(c) Remove the turn over bush from the clutch pedal.

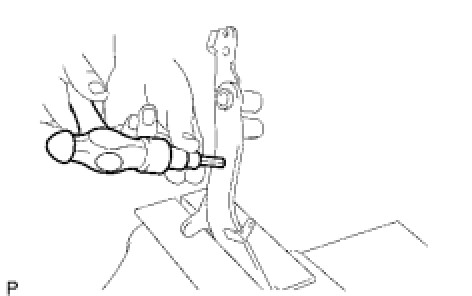

4. REMOVE CLUTCH PEDAL TURN OVER BUSH
(a) Using an 8 mm hexagon wrench and hammer, tap out the turn over bush.





5. REMOVE CLUTCH PEDAL SUB-ASSEMBLY
(a) Remove the bolt and nut.
(b) Remove the clutch pedal from the clutch pedal support.
6. REMOVE CLUTCH PEDAL PAD

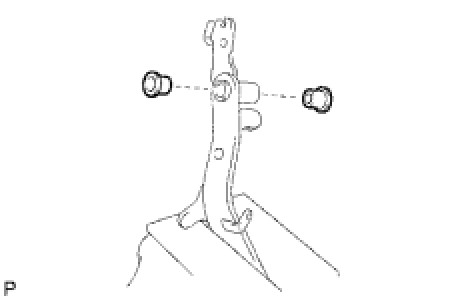

7. REMOVE CLUTCH PEDAL BUSH
(a) Remove the 2 bushes from the clutch pedal.

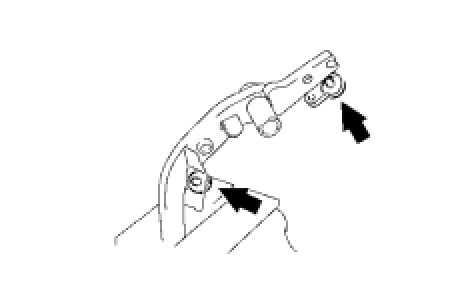

8. REMOVE NO. 1 CLUTCH PEDAL CUSHION
(a) Using needle-nose pliers, remove the 2 cushions from the clutch pedal.

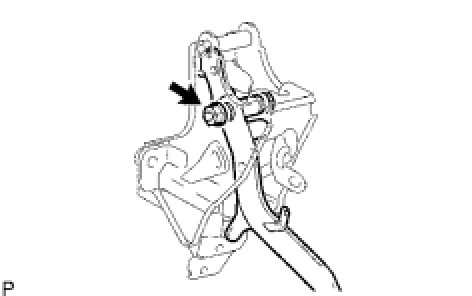

9. REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS BUSH
(a) Using an 8 mm hexagon wrench and hammer, remove the clevis bush from the clutch pedal.
