Removal

U241E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: REMOVAL

DIFFERENTIAL OIL SEAL: REMOVAL

1. REMOVE FRONT WHEEL
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE ENGINE UNDER COVER LH
4. DRAIN AUTOMATIC TRANSAXLE FLUID
(a) Remove the drain plug and gasket, and drain the ATF.
(b) Install a new gasket and the drain plug.
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
5. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH
(a) Remove the drive shaft Removal.
6. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
(a) Remove the drive shaft Removal.





7. REMOVE TRANSAXLE HOUSING OIL SEAL

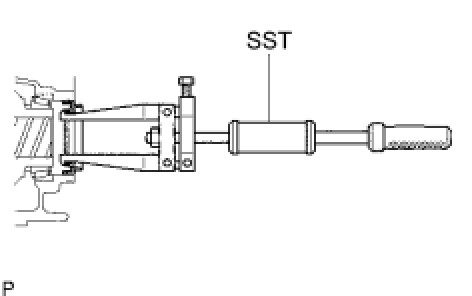

(a) Using SST, tap out the oil seal.
SST: 09308-00010





8. REMOVE DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL

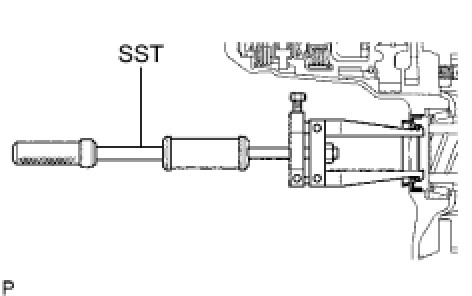

(a) Using SST, tap out the oil seal.
SST: 09308-00010
