Installation

U241E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: INSTALLATION

DIFFERENTIAL OIL SEAL: INSTALLATION

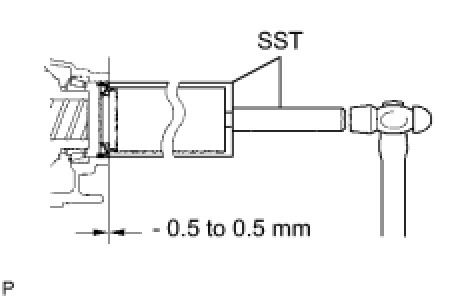

1. INSTALL TRANSAXLE HOUSING OIL SEAL
(a) Using SST and a hammer, tap in a new oil seal.
Standard depth:
- 0.5 to 0.5 mm (- 0.020 to 0.020 in.)
SST: 09316-60011
09316-00011
SST: 09950-70010
09951-07200
(b) Coat the lip of the oil seal with MP grease.

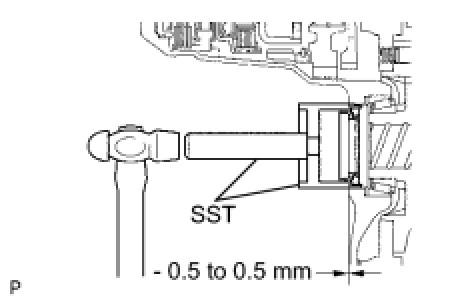

2. INSTALL DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL
(a) Using SST and a hammer, tap in a new oil seal.
SST: 09649-17010
SST: 09950-70010
09951-07150
Standard depth:
- 0.5 to 0.5 mm (- 0.020 to 0.020 in. )
(b) Coat the lip of the oil seal with MP grease.
3. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
(a) Install the drive shift Installation.
4. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH
(a) Install the drive shift Installation.
5. INSTALL ENGINE UNDER COVER RH
6. INSTALL ENGINE UNDER COVER LH
7. INSTALL FRONT WHEEL
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
8. ADD AUTOMATIC TRANSAXLE FLUID
Fluid type:
Toyota Genuine ATF WS
Standard capacity:
3.5 liters (3.7 US qts, 3.1 Imp. qts)
9. INSPECT AUTOMATIC TRANSAXLE FLUID
(a) Inspect the fluid Procedures.
