Front Shock Absorber with Coil Spring

SUSPENSION: FRONT SHOCK ABSORBER WITH COIL SPRING: INSPECTION

FRONT SHOCK ABSORBER WITH COIL SPRING: INSPECTION





1. INSPECT FRONT SHOCK ABSORBER ASSEMBLY LH

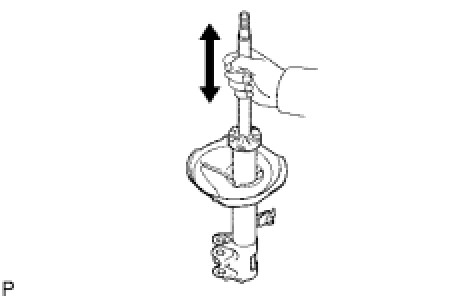

(a) Compress and extend the shock absorber rod 4 or more times. Check that there is no abnormal resistance or sound.
If there is any abnormality, replace the shock absorber with a new one.
NOTICE: When disposing of the shock absorber, see DISPOSAL Disposal.
