Home >> Scion >> 2009 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Spring ( Coil / Leaf ) >> Service and Repair >> Removal and Replacement >> Rear Shock Absorber with Coil Spring >> Components

Components

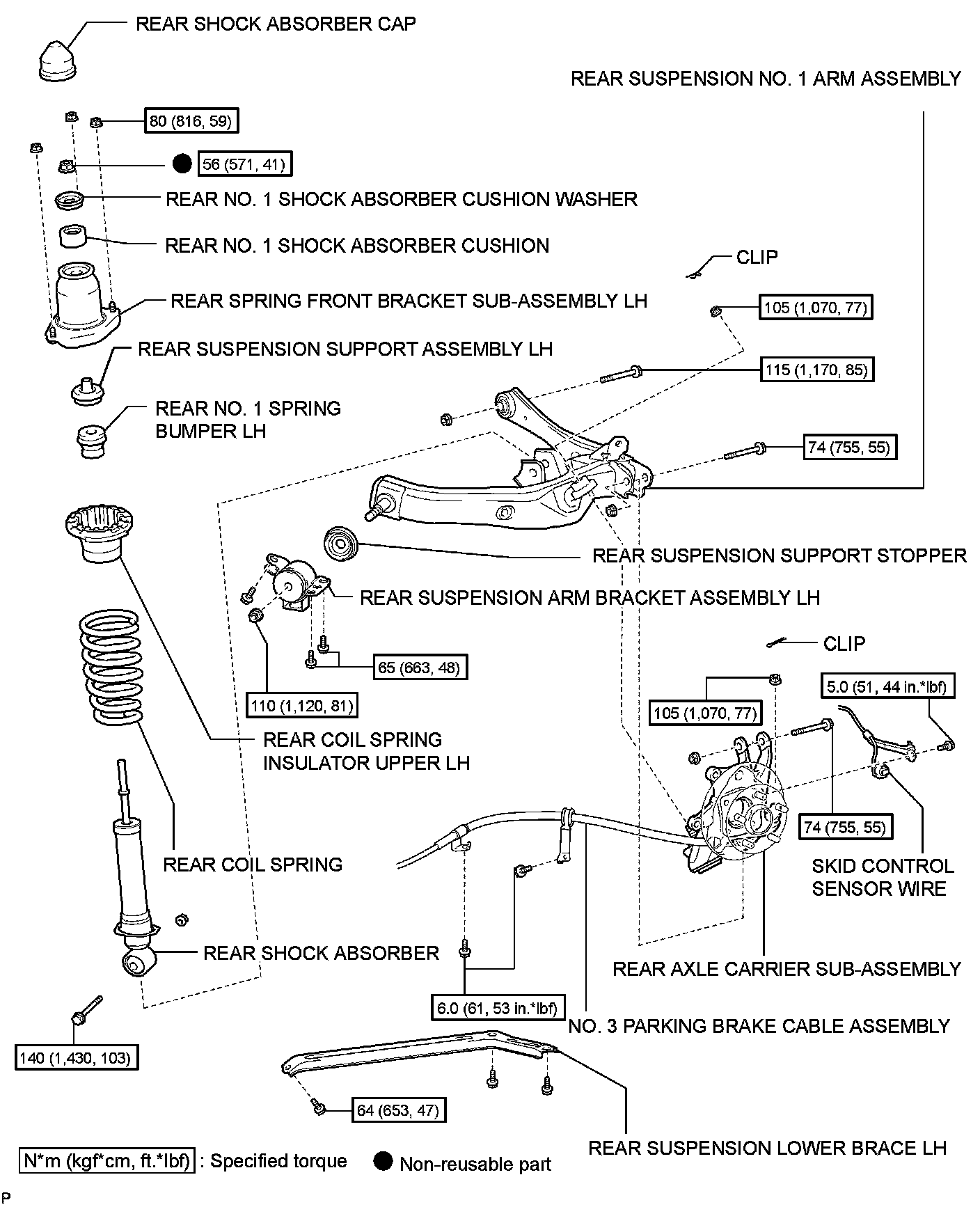

SUSPENSION: REAR SHOCK ABSORBER WITH COIL SPRING: COMPONENTS

REAR SHOCK ABSORBER WITH COIL SPRING: COMPONENTS
