Removal

SUSPENSION: REAR LOWER CONTROL ARM: REMOVAL

REAR LOWER CONTROL ARM: REMOVAL

1. REMOVE REAR WHEEL
2. REMOVE LOWER CONTROL ARM ASSEMBLY





(a) Support the No. 1 suspension arm LH.

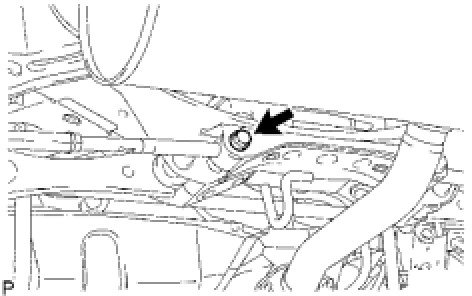

(b) Remove the bolt and disconnect the member side lower control arm LH from the rear suspension member.





(c) Remove the clip and nut.

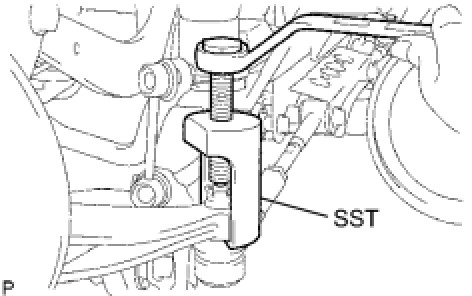

(d) Using SST, remove the lower control arm LH from the axle carrier LH.
SST: 09610-20012
NOTICE: Do not damage the dust cover.
