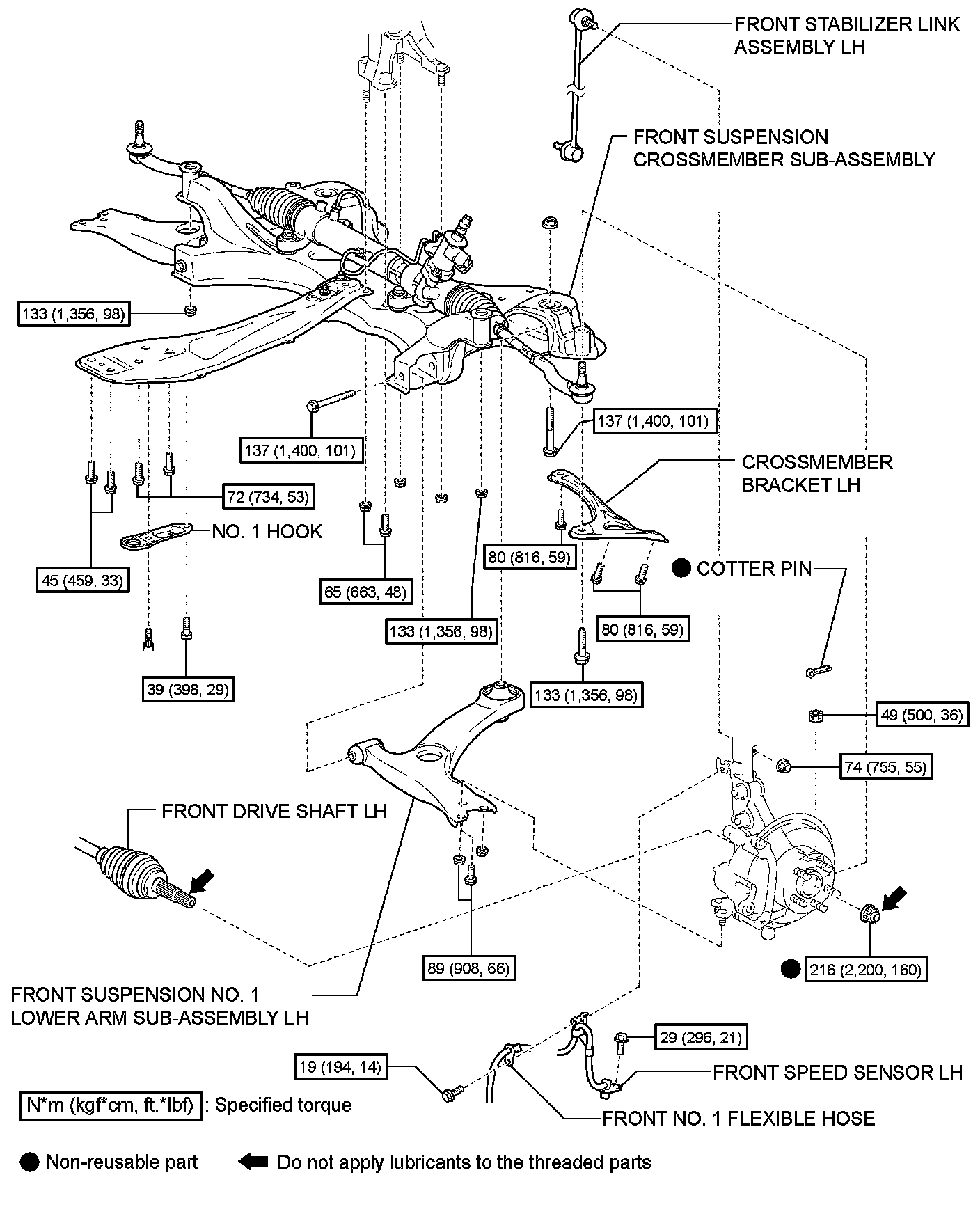

Components









SUSPENSION: FRONT SUSPENSION LOWER NO. 1 ARM: COMPONENTS

FRONT SUSPENSION LOWER NO. 1 ARM: COMPONENTS
