Starter Relay: Testing and Inspection

2AZ-FE STARTING: STARTER RELAY: ON-VEHICLE INSPECTION

2AZ-FE STARTING: STARTER RELAY: ON-VEHICLE INSPECTION

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STARTER RELAY (Marking: ST)
(a) Remove the engine room No. 2 relay box cover.
(b) Remove the starter relay.
3. INSPECT STARTER RELAY





(a) Measure the resistance of the relay.

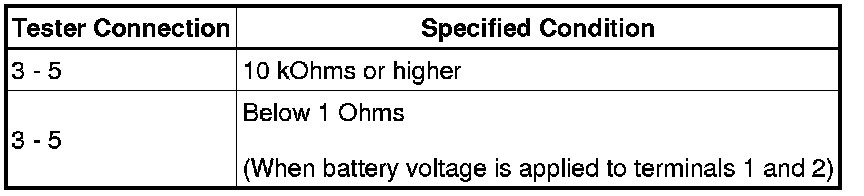

Standard resistance:





If the resistance is not as specified, replace the relay.
4. INSTALL STARTER RELAY (Marking: ST)
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
