Removal

2AZ-FE STARTING: STARTER: REMOVAL

2AZ-FE STARTING: STARTER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STARTER ASSEMBLY





(a) Disconnect the starter connector.

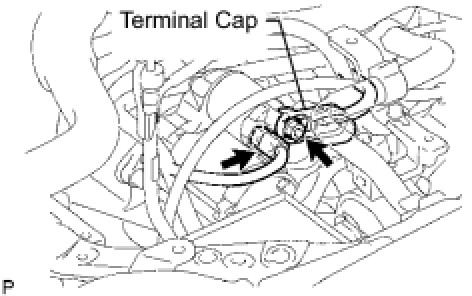

(b) Open the terminal cap.
(c) Remove the nut and disconnect the starter wire.

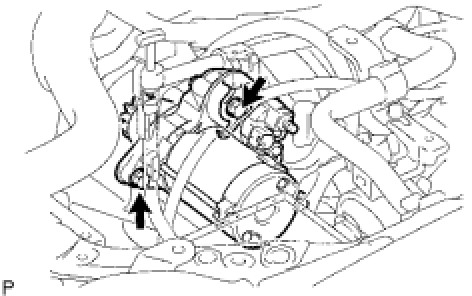

(d) Remove the 2 bolts and starter.
