Torque Specifications









SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

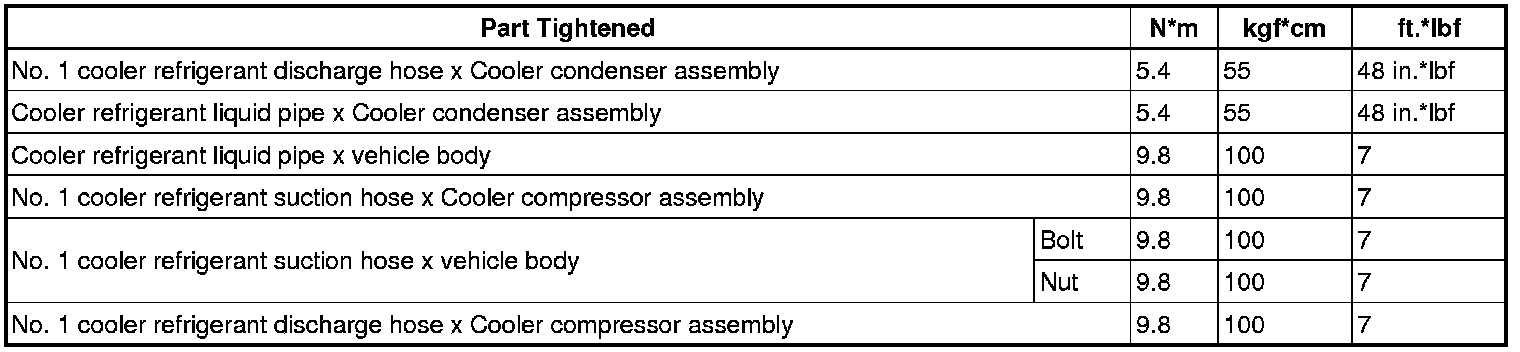

REFRIGERANT LINE:

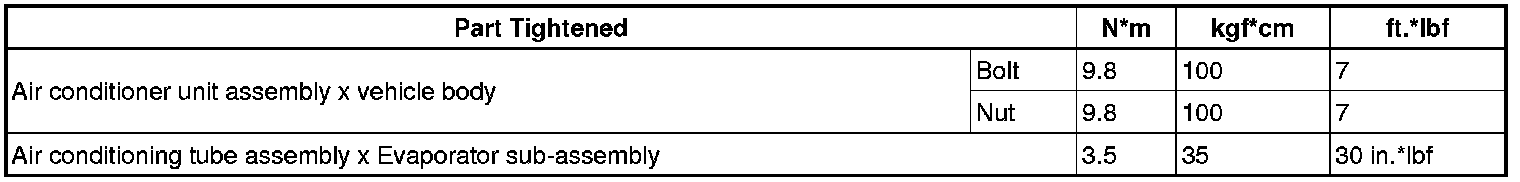

AIR CONDITIONING UNIT:





BLOWER UNIT:





COMPRESSOR AND MAGNETIC CLUTCH:

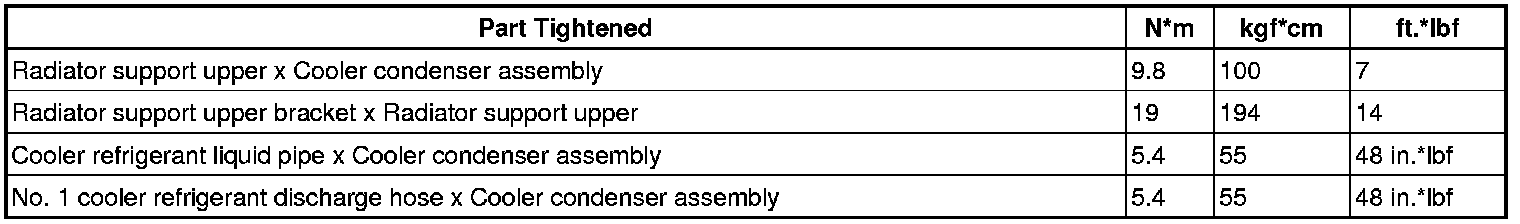

CONDENSER:
