Piston Ring, Engine

PISTON RING END GAP

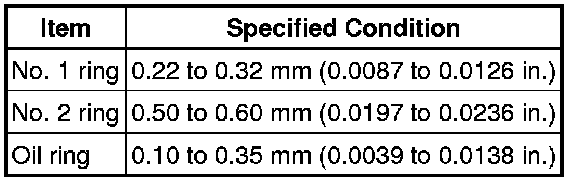

Standard end gap:

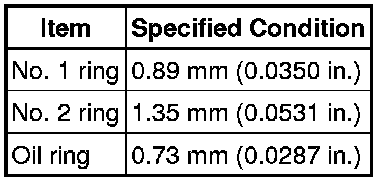

Maximum end gap:

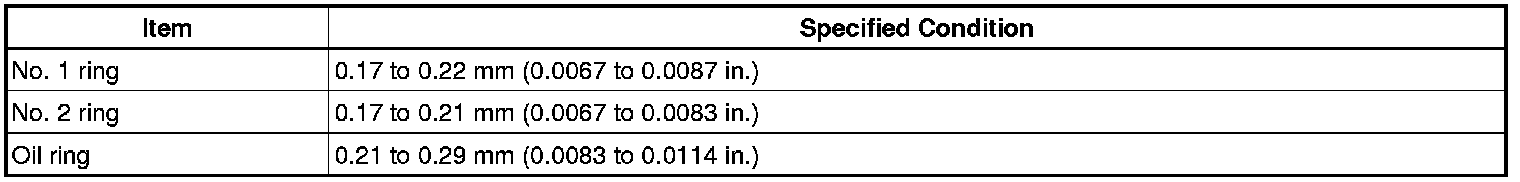

Standard ring groove clearance:
