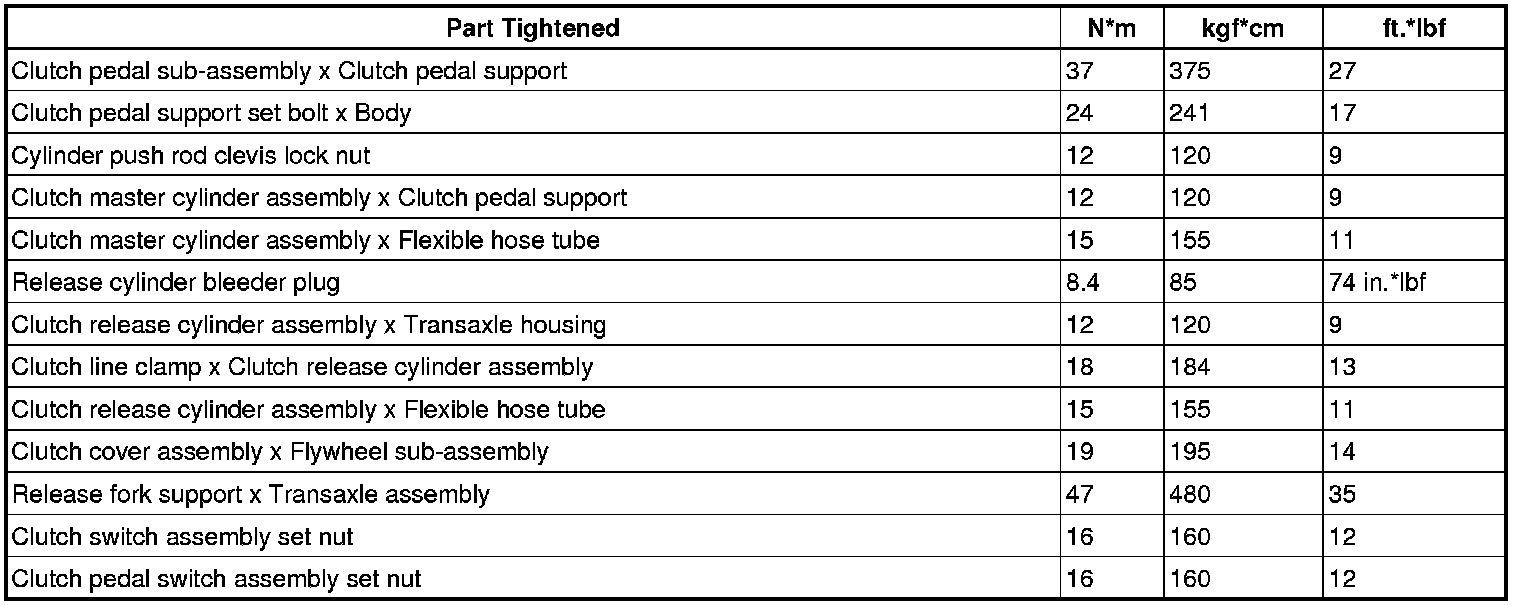

Torque Specifications

SERVICE SPECIFICATIONS: CLUTCH: TORQUE SPECIFICATIONS





CLUTCH COVER ASSEMBLY

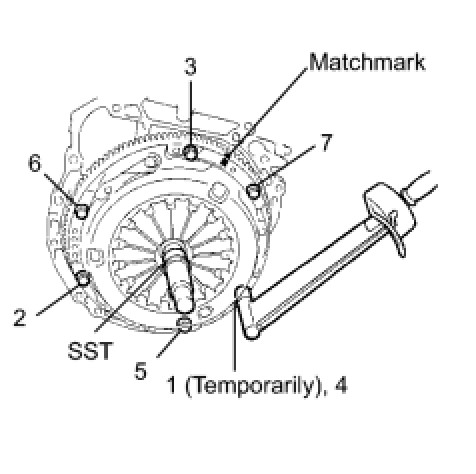

Uniformly tighten the 6 bolts relative to the position of the first bolt to be tightened. Use the illustration as a reference.

Torque: 19 Nm (195 kgf-cm, 14 ft-lbf)
