Torque Specifications










SERVICE SPECIFICATIONS: BRAKE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

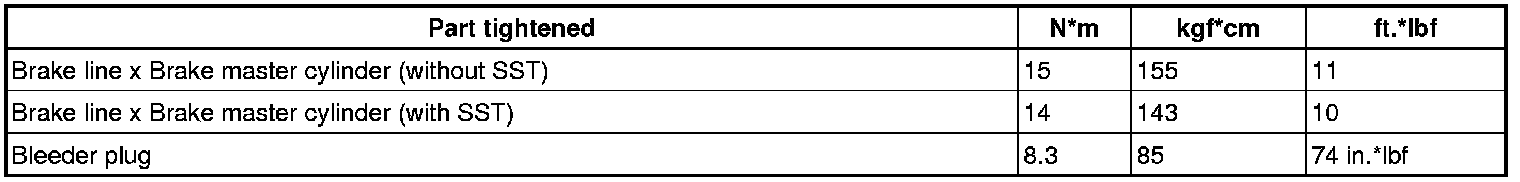

Brake fluid:

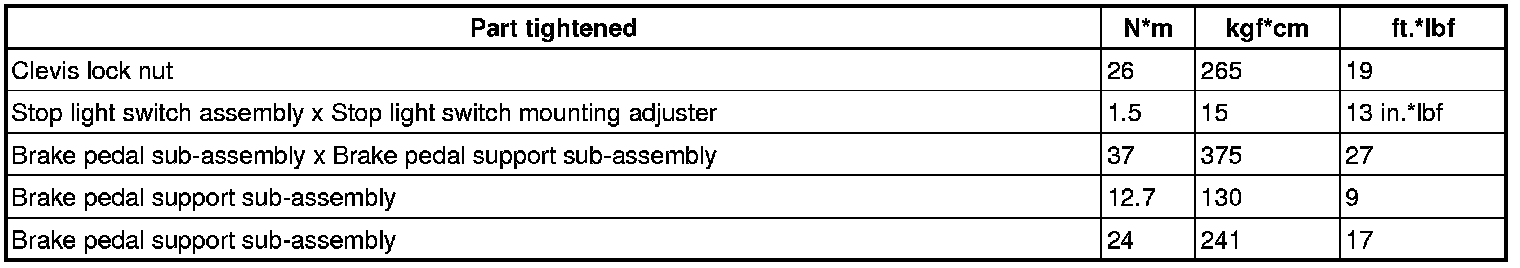

Brake pedal:

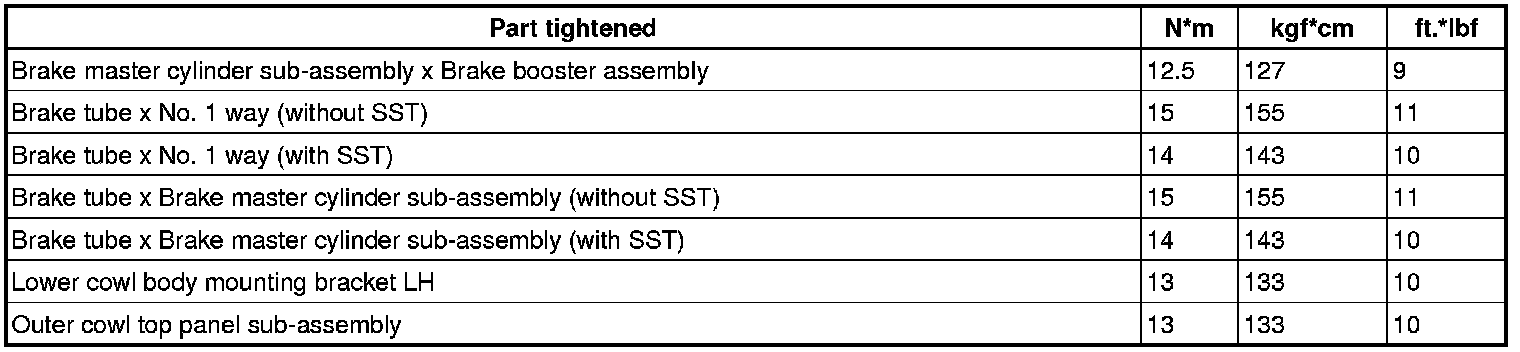

Brake master cylinder:

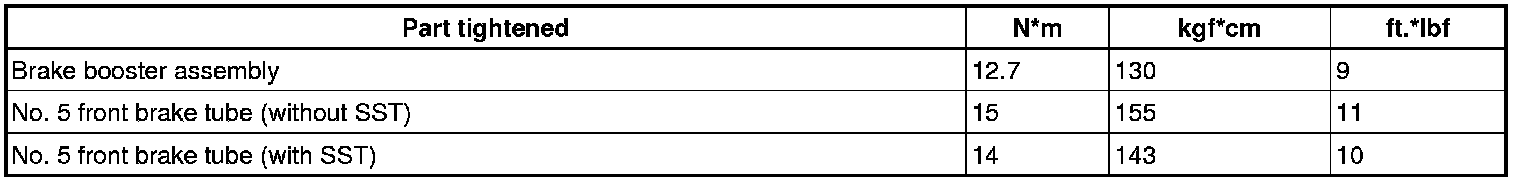

Brake booster:

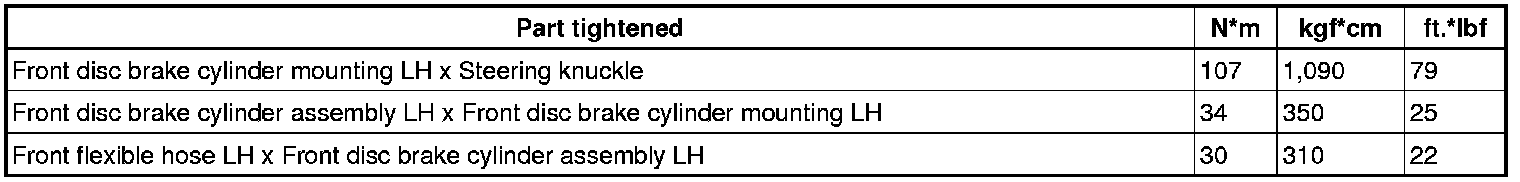

Front brake:

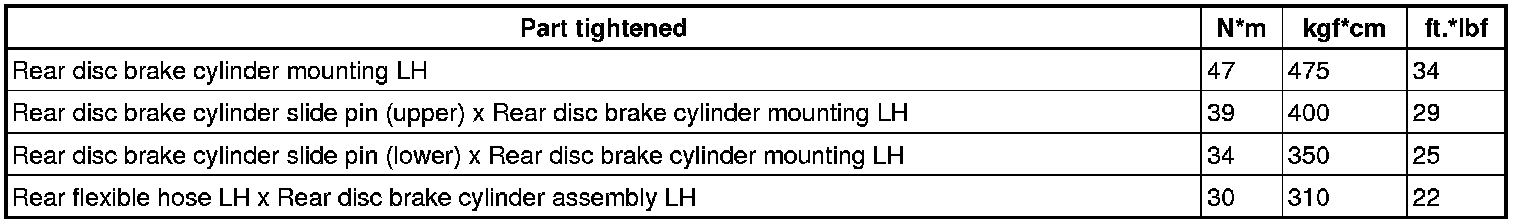

Rear brake:

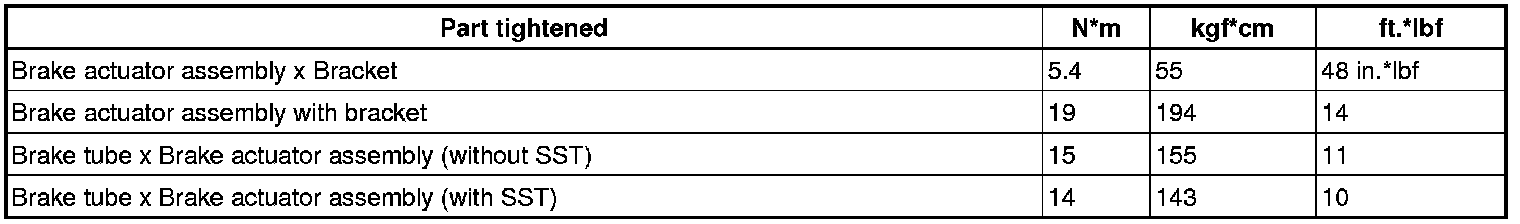

Brake actuator:

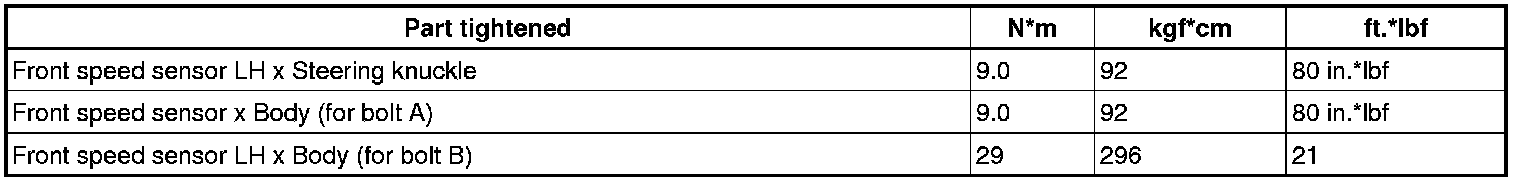

Front speed sensor:





Skid control sensor:
