Torque Specifications









SERVICE SPECIFICATIONS: PARKING BRAKE: TORQUE SPECIFICATIONS

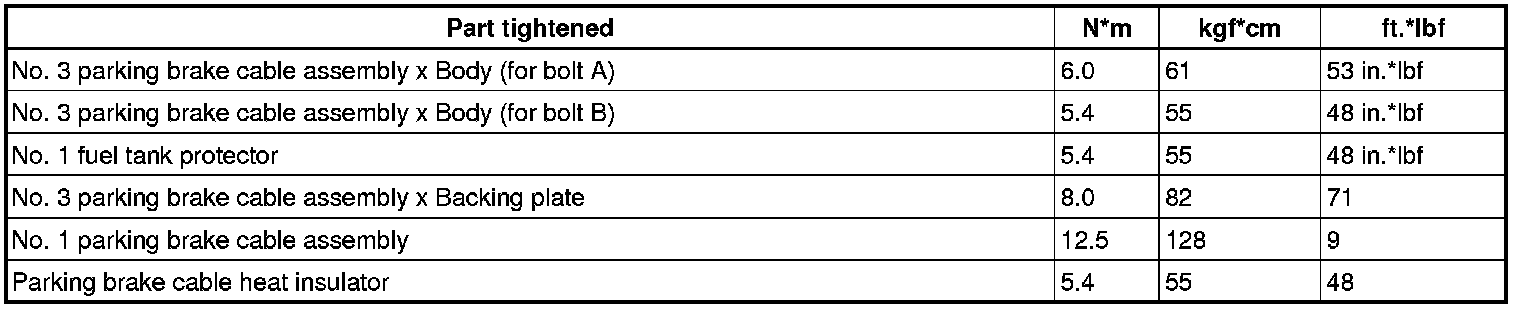

TORQUE SPECIFICATIONS

Parking brake system:





Parking brake lever:





Parking brake cable:
