Alignment
SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA
SERVICE DATA

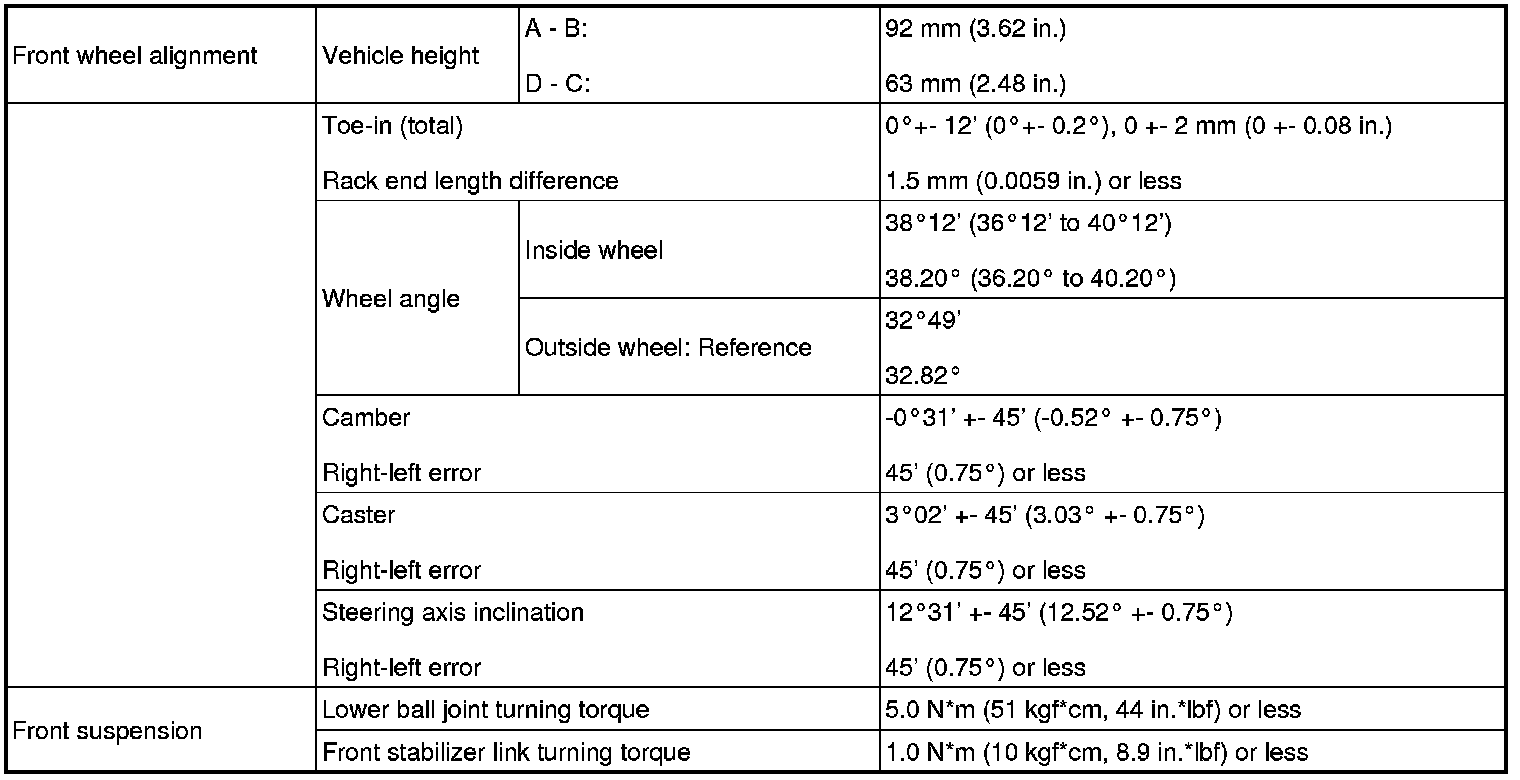

Front suspension
A: Ground clearance of front wheel center
B: Ground clearance of lower suspension arm front bolt center
C: Ground clearance of tire rod set bolt center
D: Ground of rear wheel center

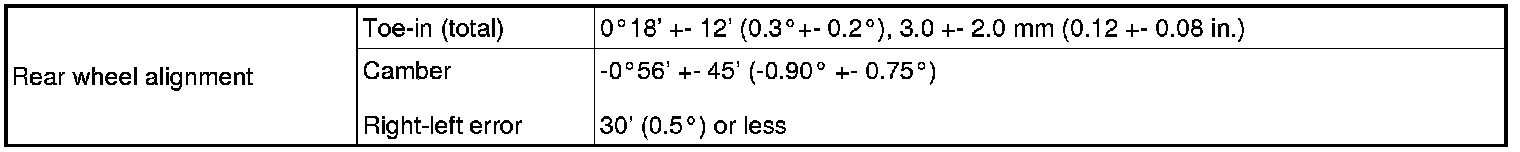

Rear suspension
