Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING RESET SWITCH: REMOVAL

TIRE PRESSURE WARNING RESET SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
HINT: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal

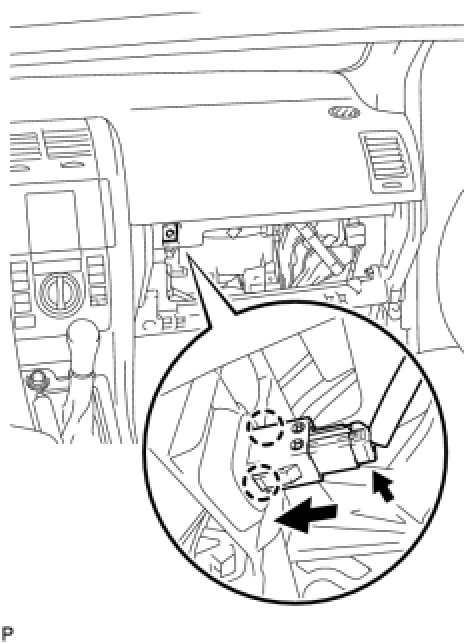

3. REMOVE TIRE PRESSURE WARNING RESET SWITCH
(a) Disconnect the connector.





(b) Disengage the 2 claws and remove the tire pressure warning reset switch from the instrument panel assembly.
