Removal

SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: REMOVAL

SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: REMOVAL
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT SEAT ASSEMBLY
(a) Remove the front seat Removal.

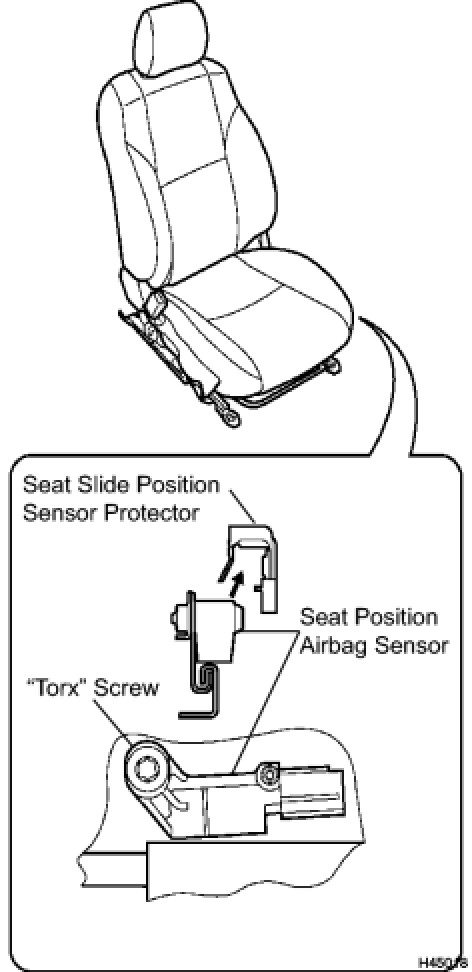

3. REMOVE SEAT SLIDE POSITION SENSOR PROTECTOR





4. REMOVE SEAT POSITION AIRBAG SENSOR
(a) Remove the seat slide position sensor protector from the seat position sensor.
(b) Using a "torx" socket (T30), remove the "torx" screw and seat position sensor with sensor protector.
(c) Disconnect the connector.
